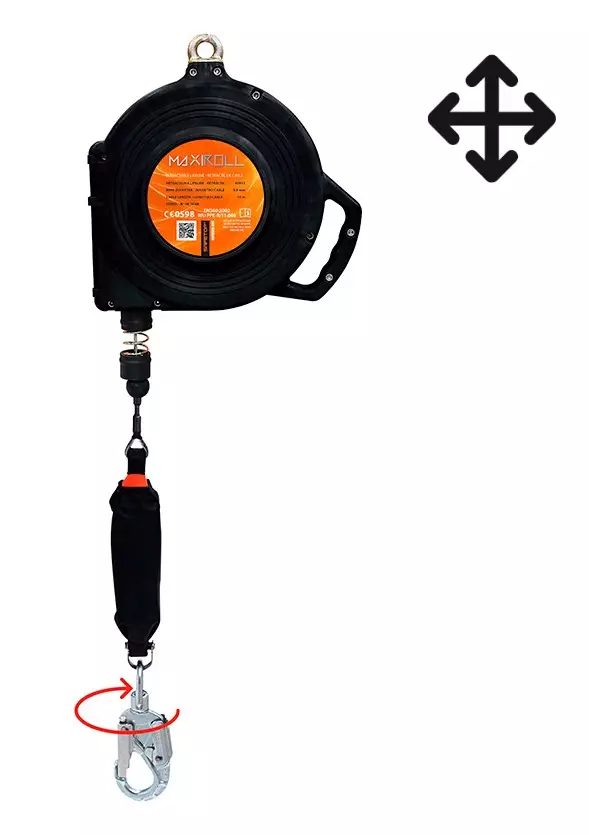

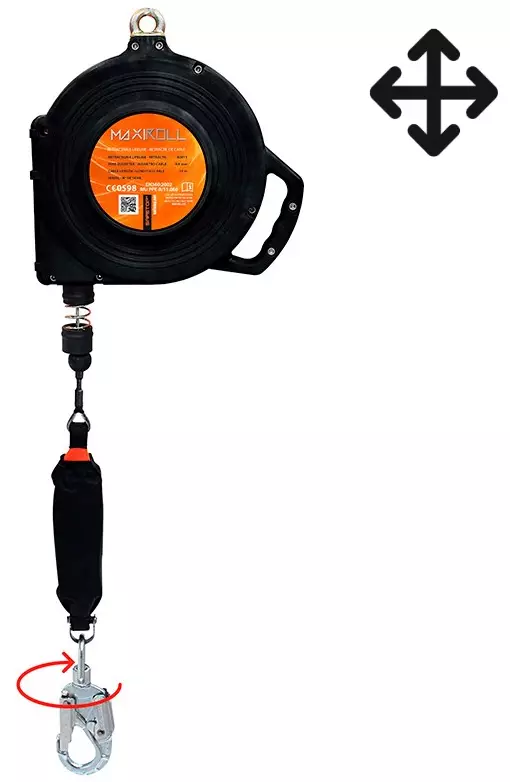

Safetop Maxiroll self-retracting wire lifeline 15 m

Safetop MAXIROLL 15 m retractable cable fall arrester for vertical and horizontal use

Safetop MAXIROLL 80815 is a 15 metre retractable cable fall arrester for construction, industrial and maintenance applications. Its long automatically retracting steel cable provides a wide working range without manual adjustment of the lanyard length.

The device is suitable for vertical and horizontal use. A swivelling lower connector helps prevent the cable from twisting as the user moves.

Key features

• 15 m galvanised steel cable
• For vertical and horizontal use
• 4.8 mm cable diameter
• Maximum user weight 120 kg
• Swivelling lower connector
• Durable thermoplastic housing
• Carrying handle for easier handling
• Spring outlet guide directs the cable and reduces rubbing against the housing

Cable guidance

The spring guide at the housing outlet directs the steel cable at different working angles. This reduces direct contact between the moving cable and the housing edge and helps minimise wear.

Technical specifications

• Brand: Safetop
• Model: MAXIROLL 80815
• Cable length: 15 m
• Cable: galvanised steel
• Cable diameter: 4.8 mm
• Maximum user weight: 120 kg
• Housing: thermoplastic
• Use: vertical and horizontal
• Standard: EN 360 - Retractable type fall arresters
• Standard: EN 362 - Connectors for personal fall-protection equipment

Inspection and service at Protecton Oy Turku

The device and cable must be inspected before every use. The cable must not show broken strands, corrosion, excessive wear or other damage that could affect safety.

MAXIROLL units are serviced at Protecton Oy Turku. The device is opened, inspected and the necessary components are replaced before it is returned to service.

If an unusually extensive defect is found or the repair cost will be higher than normal servicing, Protecton service will call the customer and provide a cost estimate before carrying out the repair.
