YT-81002 Extension Lead

Yato YT-81002 Extension Lead 3G2.5 mm², 30 m

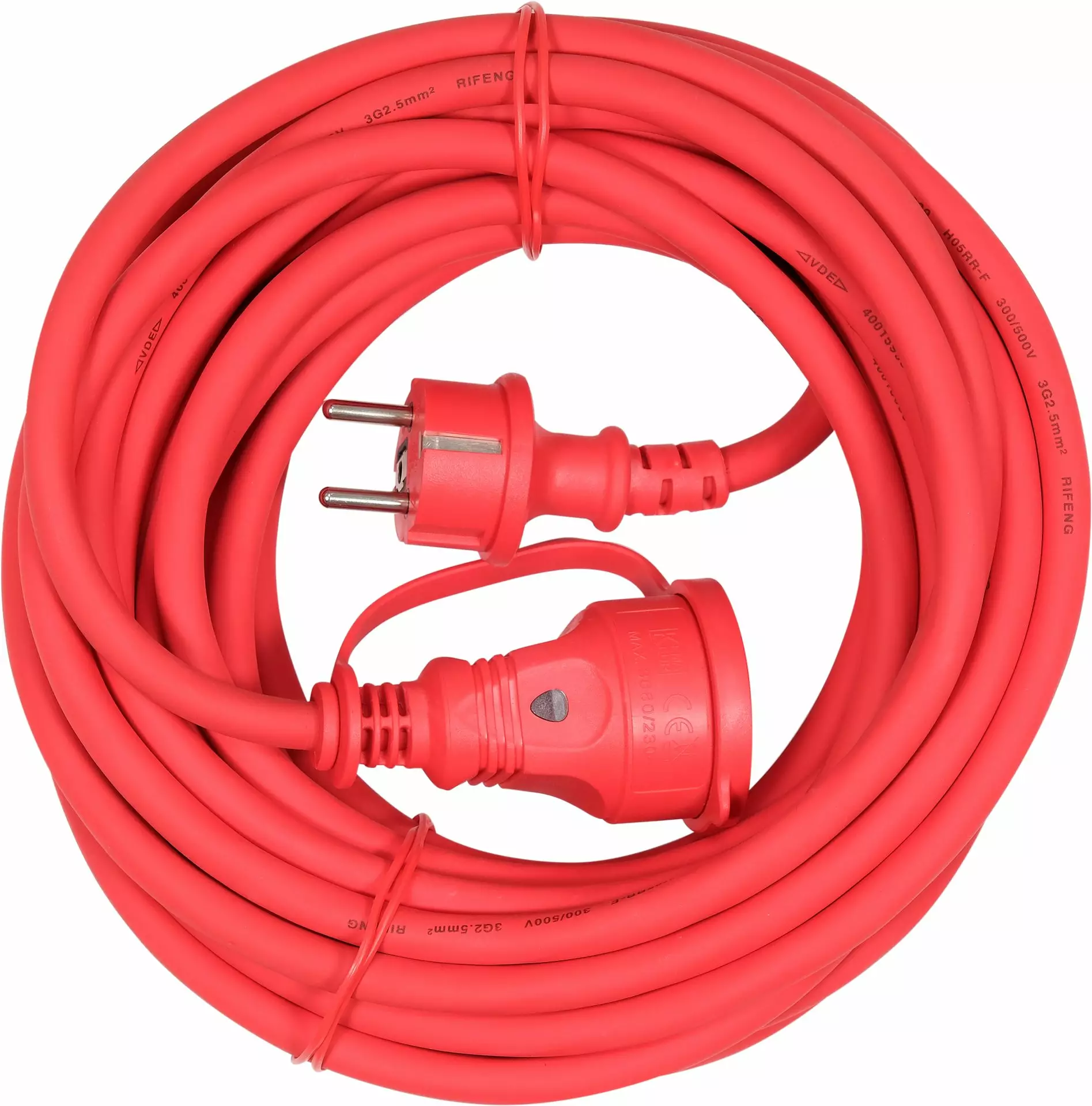

The Yato YT-81002 is a 30-metre extension lead designed for construction sites, workshops, industrial environments and other demanding work areas. Its H05RR-F cable contains three 2.5 mm² copper conductors, while an integrated LED indicator shows when voltage is present at the socket. The red cable is easy to identify in a busy work environment.

Key Features

• 30-metre cable for an extended working range
• H05RR-F cable with 3G2.5 mm² conductors
• Maximum current of 16 A and continuous load of up to 3680 W
• IP44-rated socket
• Integrated LED voltage indicator
• Earthed socket with child protection
• CPE outer sheath specified by the manufacturer as resistant to UV radiation and chemicals
• Cable remains flexible in freezing conditions

Applications

The extension lead is suitable for connecting compatible power tools and electrical equipment on construction sites and in maintenance, installation, industrial and workshop applications. The IP44-rated socket is protected against solid objects larger than 1 mm and splashing water.

Safety and Use

Select the extension lead according to the connected equipment, working environment and site-specific requirements. Do not exceed the maximum current of 16 A or the maximum continuous load of 3680 W. Inspect the cable, plug and socket for damage before use.

Technical Specifications

• Brand: Yato
• Model: YT-81002
• Cable length: 30 m
• Cable type: H05RR-F
• Conductor: copper, 3G2.5 mm²
• Voltage: 250 V AC
• Maximum current: 16 A
• Maximum continuous load: 3680 W
• Number of sockets: 1
• Socket type: E/F
• Plug type: E
• Earthing: yes
• Protection rating: IP44
• Cable sheath: CPE
• Conductor insulation: EPDM
• Cable outer diameter: approximately 10.2 mm
• Colour: red
• Indicator: LED voltage indicator
• EAN: 5906083103445
