Scangrip Pen light 200 R
- Product Code: SG035127

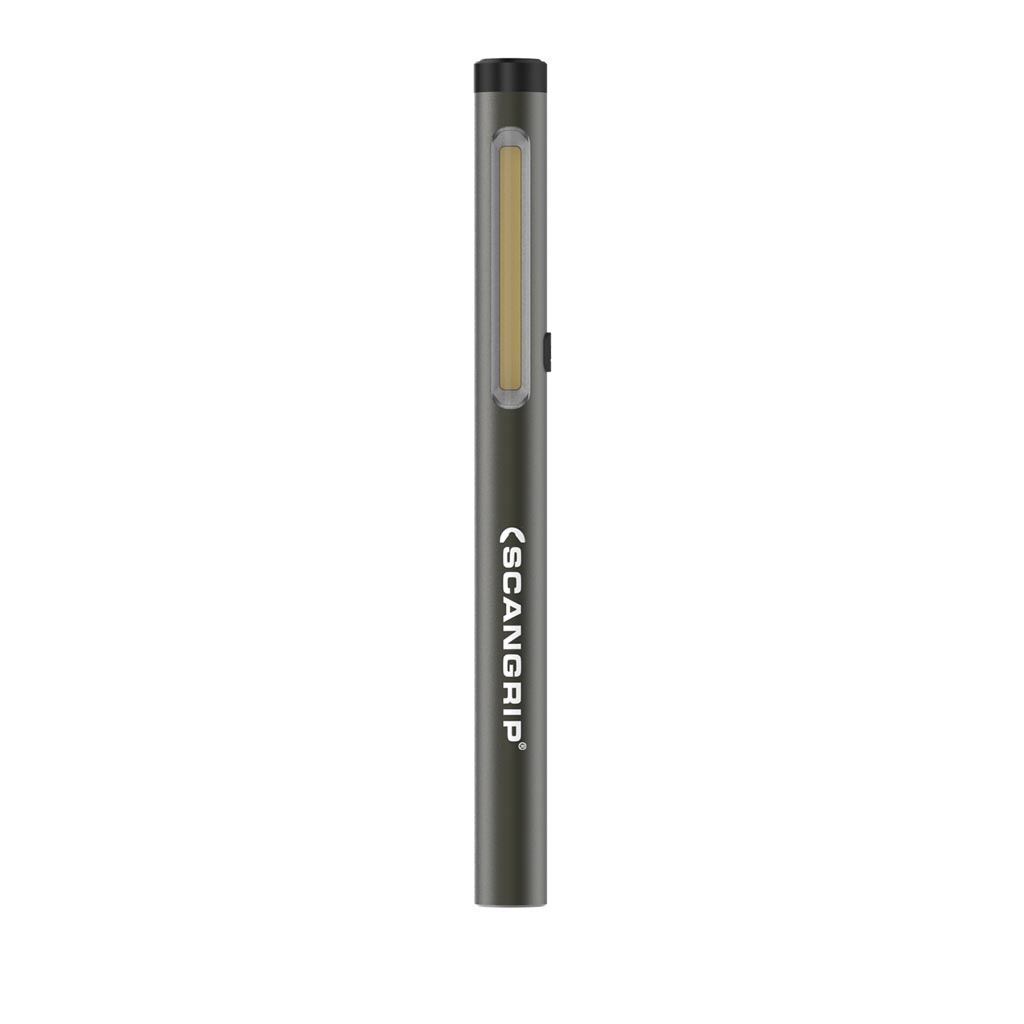

SCANGRIP WORK PEN 200 R rechargeable 200 lm LED penlight
SCANGRIP WORK PEN 200 R is a compact rechargeable LED penlight for professional inspection, repair and maintenance work. Its steplessly dimmable 20–200 lumen COB LED main light provides broad work-area illumination, while the 150 lumen precision top light is suited to inspecting details and confined spaces.
Key features
- Steplessly adjustable 20–200 lm COB LED main light
- Separate 150 lm precision top light
- Main-light operating time of 1–10 hours, depending on output
- Built-in magnets in both the pocket clip and base
- Slim aluminium construction reaches confined areas
- Pocket clip keeps the light readily accessible
- Main light remembers the most recently used brightness setting
- Charging indicator changes from red to green when charging is complete
Applications
The penlight is suitable for vehicle inspection and repair, electrical and installation work, machinery maintenance, construction sites and other tasks requiring a compact portable work light. Its integrated magnets allow the light to be attached to a suitable metal surface for hands-free illumination.
Safety and compliance
WORK PEN 200 R is a CE-marked Class III luminaire. The manufacturer's EU Declaration of Conformity covers the applicable low-voltage, EMC and RoHS requirements. Its IP30 rating provides protection against solid objects measuring at least 2.5 mm but offers no water protection. The light is therefore unsuitable for rain or wet conditions.
Do not use the light near an open flame or look directly into the beam. Charge indoors at a minimum temperature of 0 °C. The integrated LED light source is not replaceable.
Technical details
- Manufacturer product number: 03.5127
- EAN: 5708997351277
- Main light: COB LED, 20–200 lm
- Main-light illuminance: 400 lx at 0.5 m
- Main-light beam angle: 105°
- Main-light colour temperature: 6000 K
- Main-light colour rendering: CRI Ra > 80
- Top light: LED, 150 lm
- Top-light illuminance: 3500 lx at 0.5 m
- Top-light beam angle: 20°
- Beam distance: up to 40 m
- Operating time: 1–10 h; top light 1 h
- Battery: 3.7 V / 750 mAh Li-ion
- Charging time: 2.5 h
- Charging input: 5 V DC / 1 A
- Ingress protection: IP30
- Operating temperature: -10 to +40 °C
- Impact resistance: 1 m drop test
- Dimensions: Ø 21 × 172 mm
- Weight: 54 g
- In the box: penlight, 1 m USB charging cable and manual
- Mains charger: not included
