Probelt IM200 Mobile Anchor Point
- Product Code: IM200
- Availability: Factory order: 37 weeks
Protekt IM200 Portable Anchor Point for up to 2 Users | Deadweight Anchor

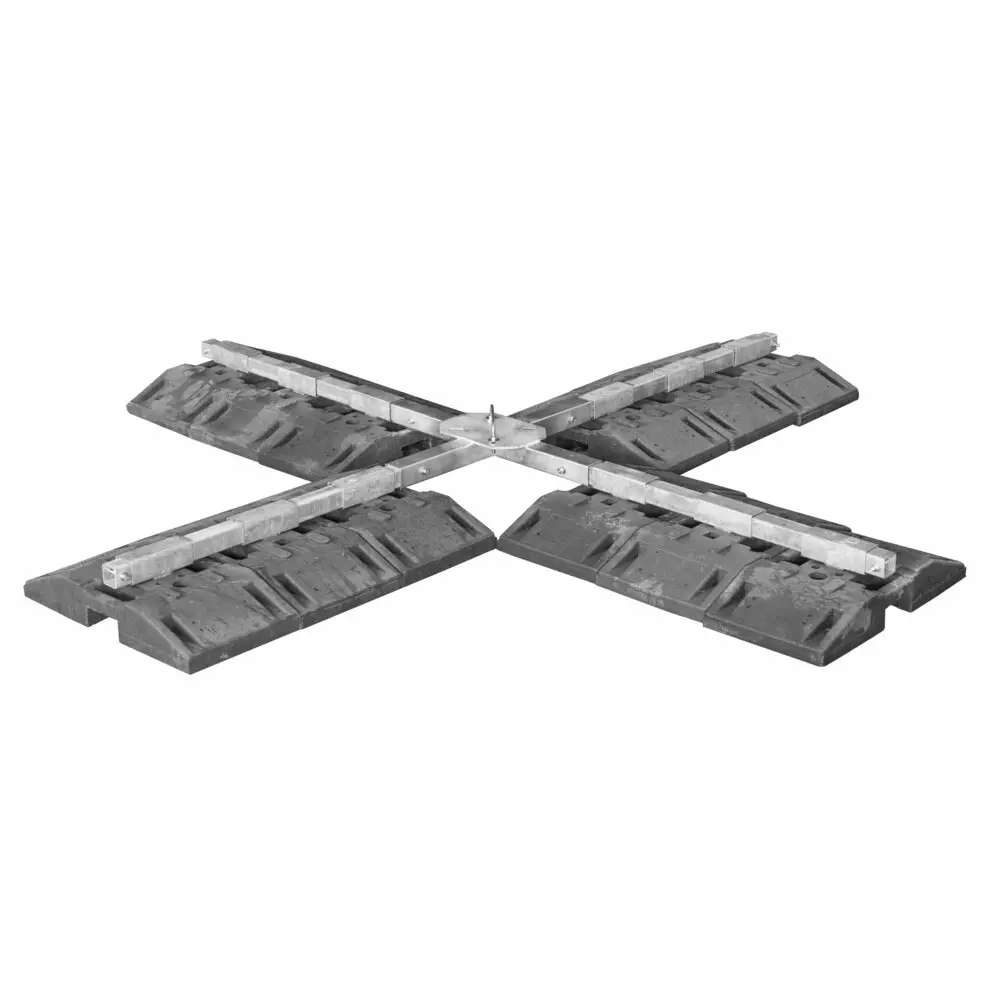

The Protekt IM200 is a portable and demountable deadweight anchor designed to provide an anchorage point for a personal fall protection system. It is intended for work on flat roofs with a suitable surface and sufficient load-bearing capacity. The anchor point can be used by a maximum of two people simultaneously.
Key features
- Portable anchor point for up to two simultaneous users
- Modular, demountable construction for transportation and storage
- Consists of a central structure and 12 rubber weights
- Each rubber weight weighs 28 kg
- Total system weight of 367 kg
- Hot-dip galvanised steel components
- Rubber weights made from a UV-resistant rubber compound
Applications
The IM200 is suitable for providing a temporary anchorage point during installation, maintenance and servicing work on flat roofs. According to the operating manual, it can be used on bitumen and PVC membrane surfaces with an inclination of no more than 5 degrees, provided that the roof has sufficient load-bearing capacity.
The product is not intended for use on icy, greasy or otherwise slippery surfaces or in freezing conditions. Positioning, assembly and use must follow the manufacturer’s operating instructions.
Safety and compliance
The Protekt IM200 is a portable anchorage device compliant with EN 795:2012 Type E. The operating manual also specifies CEN/TS 16415:2013. The anchor point is intended for use with compatible fall protection equipment as part of a fall protection system assembled in accordance with the manufacturer’s instructions.
Technical specifications
- Product model: Protekt IM200
- Product type: portable deadweight anchor
- Maximum number of users: 2 persons
- Assembled dimensions: 3020 × 3020 × 267 mm
- Total weight: 367 kg ± 2 kg
- Rubber weights: 12 pcs, 28 kg each
- Steel component material: hot-dip galvanised steel
- Weight material: UV-resistant rubber compound
- Suitable roof surfaces: bitumen and PVC membrane
- Maximum surface inclination: 5°
- Standard: EN 795:2012 Type E
- Technical specification: CEN/TS 16415:2013
- Reference number: IM200
- EAN: 5906800614100
Availability and delivery
The IM200 is a made-to-order product stocked in Poland. Please request a quotation before ordering. The quotation will confirm the product price, freight cost from Poland to the specified delivery address and the estimated delivery time.
