Probelt HLH700 Anchor Point for Metal Roof

Anchor point for 3 persons | Trapezium
Probelt HLH700 Anchor Point for Metal Roof - Ankkurointipisteet - HLH700 - 1
Probelt HLH700 Anchor Point for Metal Roof - Ankkurointipisteet - HLH700 - 2
Probelt HLH700 Anchor Point for Metal Roof - Ankkurointipisteet - HLH700 - 3
Probelt HLH700 Anchor Point for Metal Roof - Ankkurointipisteet - HLH700 - 1
PROTEKT HLH 700 102 anchorage point kit for sheet metal thicker than 0.5 mm The PROTEKT HLH 700 102 is a stainless-steel anchorage point and riveting kit designed for installation on profiled or... Read more
288,91 €(tax incl.)
230,21 €(tax excl.)
In stock now
  • Product Code: HLH700
pcs
pcs

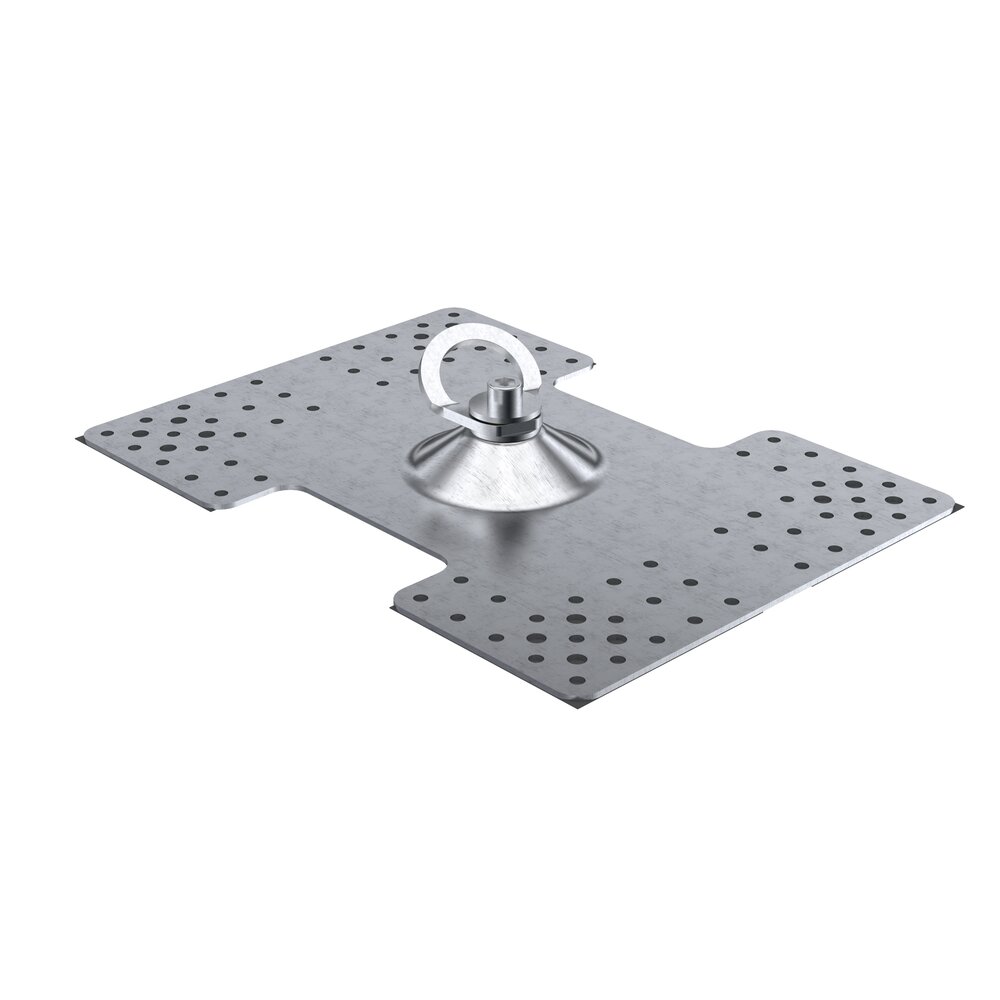

PROTEKT HLH 700 102 anchorage point kit for sheet metal thicker than 0.5 mm

The PROTEKT HLH 700 102 is a stainless-steel anchorage point and riveting kit designed for installation on profiled or trapezoidal sheet metal thicker than 0.5 mm. It provides an attachment point for a personal fall-protection system and is suitable for simultaneous use by up to three users.

Key features

  • Anchorage point and fastening kit for trapezoidal sheet metal
  • Suitable for roofing sheet thicker than 0.5 mm
  • Fastened with eight 7 mm sealed blind rivets
  • 360° rotating anchorage point
  • Stainless-steel construction
  • Static strength of 30 kN
  • Suitable for up to three simultaneous users
  • Attachment opening diameter of 45 mm
  • Designed for use as part of a personal fall-protection system

Contents

  • 1 rotating anchorage point
  • 1 anchorage-point mounting plate
  • 8 sealed 7 mm blind rivets

Applications

The HLH 700 102 is suitable for fall-protection installations on trapezoidal sheet roofs of industrial buildings, warehouses, production facilities and similar structures. It can be used with compatible personal fall-protection equipment and PROTEKT AE 320 or AE 321 horizontal anchorage systems in accordance with the instructions for the complete system.

Safety and compliance

The anchorage point meets the requirements of EN 795:2012 type A and CEN/TS 16415:2013. The suitability of the supporting structure, sheet thickness, fastening locations and complete roof construction must be confirmed before installation. Installation must be performed by a competent installer in accordance with the manufacturer's instructions.

Technical specifications

  • Manufacturer: PROTEKT
  • Model: HLH 700 102
  • Reference number: HLH700 102
  • EAN: 5906800614186
  • Version: anchorage point and riveting kit
  • Installation surface: profiled or trapezoidal sheet metal
  • Sheet thickness: over 0.5 mm
  • Material: stainless steel
  • Dimensions: 375 × 275 mm
  • Static strength: 30 kN
  • Maximum number of users: 3
  • Attachment opening diameter: 45 mm
  • Fastening: 8 blind rivets, 7 mm
  • Longitudinal mounting-hole spacing: 250, 300 or 350 mm
  • Transverse mounting-hole spacing: 200 or 250 mm
  • Standards: EN 795:2012 type A and CEN/TS 16415:2013
