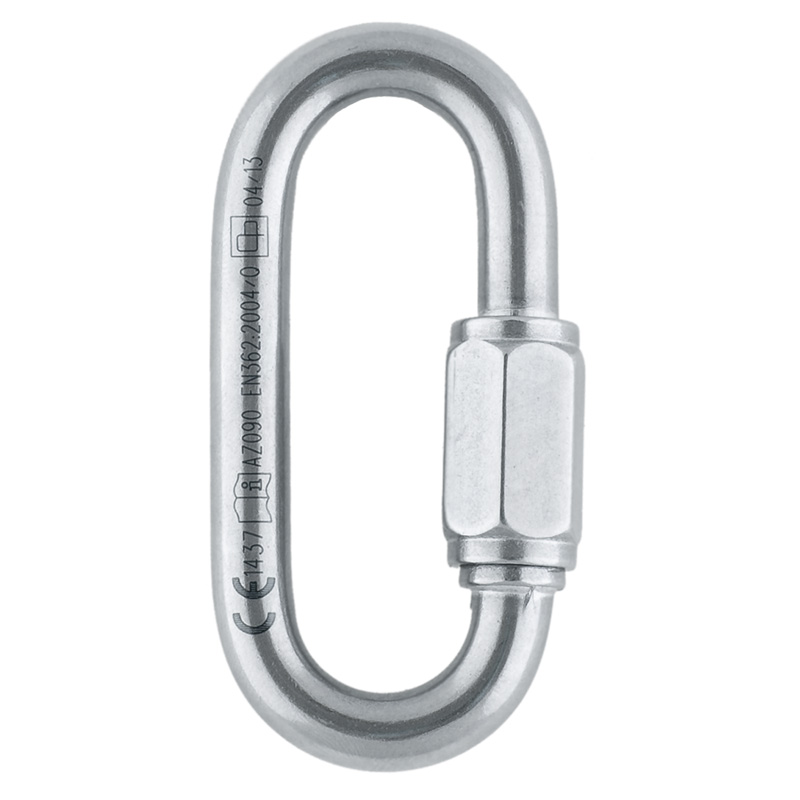

Probelt AZ090 Screw Locking Link
- Product Code: 831090
Probelt AZ090 Screw Link
The Probelt AZ090 is a screw-locking link designed for temporary or permanent connections between compatible components of a fall protection system. Manufactured from stainless steel, this Class Q connector provides a minimum major-axis strength of 35 kN.
Key features
- Screw-locking nut
- Stainless steel construction
- 10 mm gate opening
- Minimum major-axis strength of 35 kN
- Suitable for temporary or permanent system connections
- Class Q connector compliant with EN 362
Applications
The AZ090 is designed for connecting compatible PPE and fall protection system components. Its screw-locking construction is particularly suitable for connections that do not require frequent opening and closing.
Safety and compliance
The connector complies with EN 362:2004 Class Q and carries the CE 0082 marking. Loads must be applied along the connector's major axis. The locking nut must be fully tightened so that the entire thread is covered and the nut contacts the protective ring. The connector must be inspected by a competent person at intervals of no more than 12 months.
Technical specifications
- Brand: Probelt
- Model: AZ090
- Product code: 831090
- Connector type: screw link, Class Q
- Material: stainless steel
- Steel rod diameter: 10 mm
- Gate opening: 10 mm
- Minimum major-axis strength: 35 kN
- Standard: EN 362:2004/Q
- CE marking: CE 0082
