Permanent anchor plate AT180 with bolt
- Product Code: AT180_SCREW
PROTEKT AT180 permanent anchor point with concrete anchor

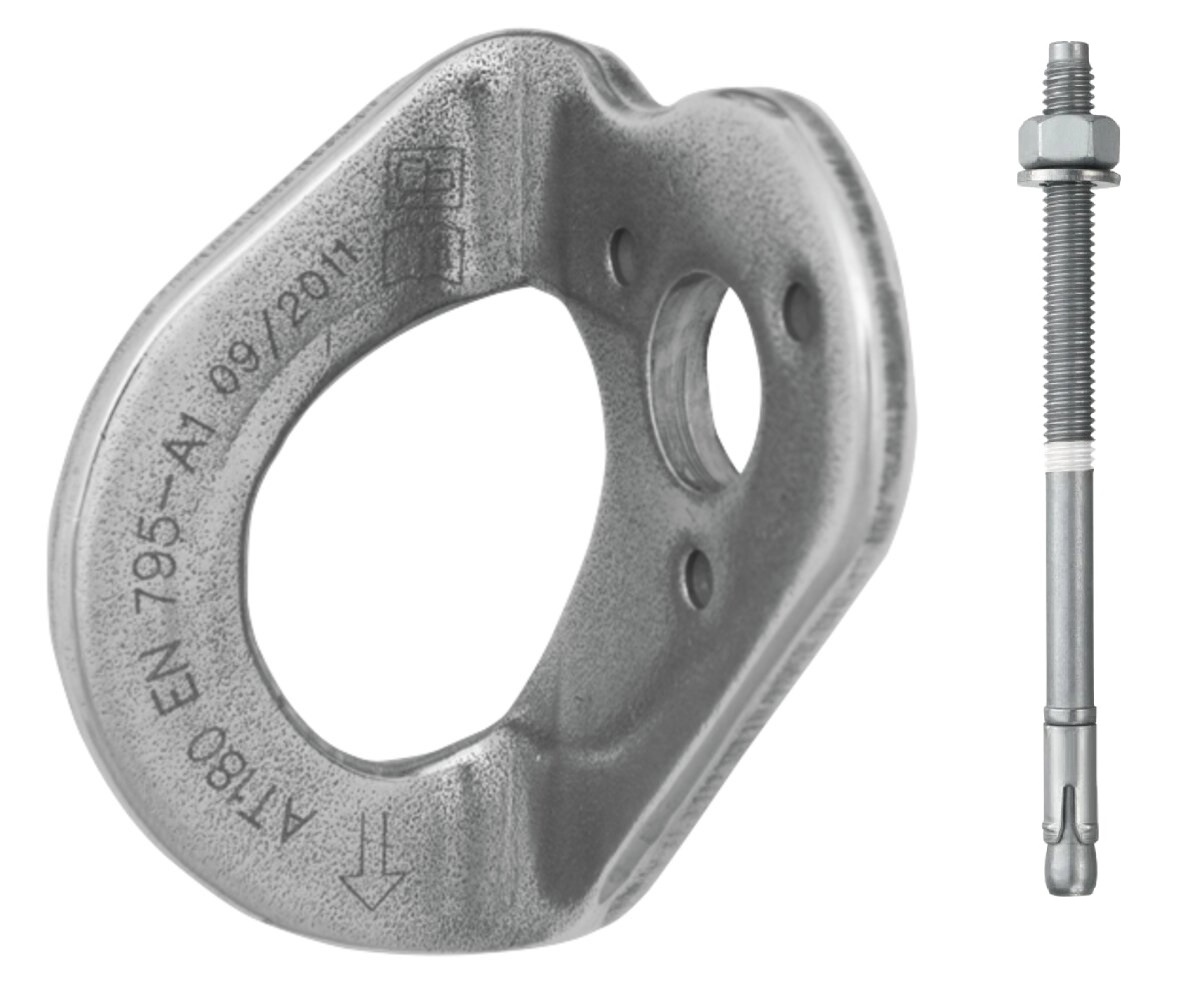

The PROTEKT AT180 is a permanent anchor point designed for connecting a personal fall protection system for one user. The compact stainless steel anchor plate is installed on a concrete structure using the included HST2-R M12x115/20 wedge anchor.
Key features
- Permanently installed type A anchor point
- Designed for a single-user fall protection system
- Stainless steel construction
- Compact anchor plate secured with one anchor
- Concrete installation kit included
- Static strength of 12 kN
Applications
The AT180 is suitable for creating a permanent anchorage point on concrete structures in buildings, industrial facilities and maintenance environments. It provides a connection point for a compatible personal fall protection system. The product is not intended for lifting materials.
Safety and compliance
The anchor point complies with EN 795:2012 type A and is designed for one user. According to the manufacturer's instructions, the concrete substrate must have a minimum compressive strength of 20 MPa. The suitability of the supporting structure and installation must be verified in accordance with the manufacturer's instructions and the structural requirements of the site.
Technical specifications
- Product model: PROTEKT AT180
- Product type: permanent anchor plate / anchor point
- Maximum number of users: 1
- Installation surface: concrete
- Material: stainless steel
- Dimensions: 56 x 48 x 35 mm
- Plate thickness: 4 mm
- Weight: 0.065 kg
- Static strength: 12 kN
- Fixing hole diameter: 12.5 mm
- Connection opening diameter: 17 mm
- Standard: EN 795:2012/A
Included installation kit
- Wedge anchor: HST2-R M12x115/20
- Material: stainless steel
- Length: 115 mm
- Quantity: 1 pc
