Dynaroll 80230J 2 m retractable fall arrester
- Product Code: 80230J
- Availability: Factory order: 37 weeks

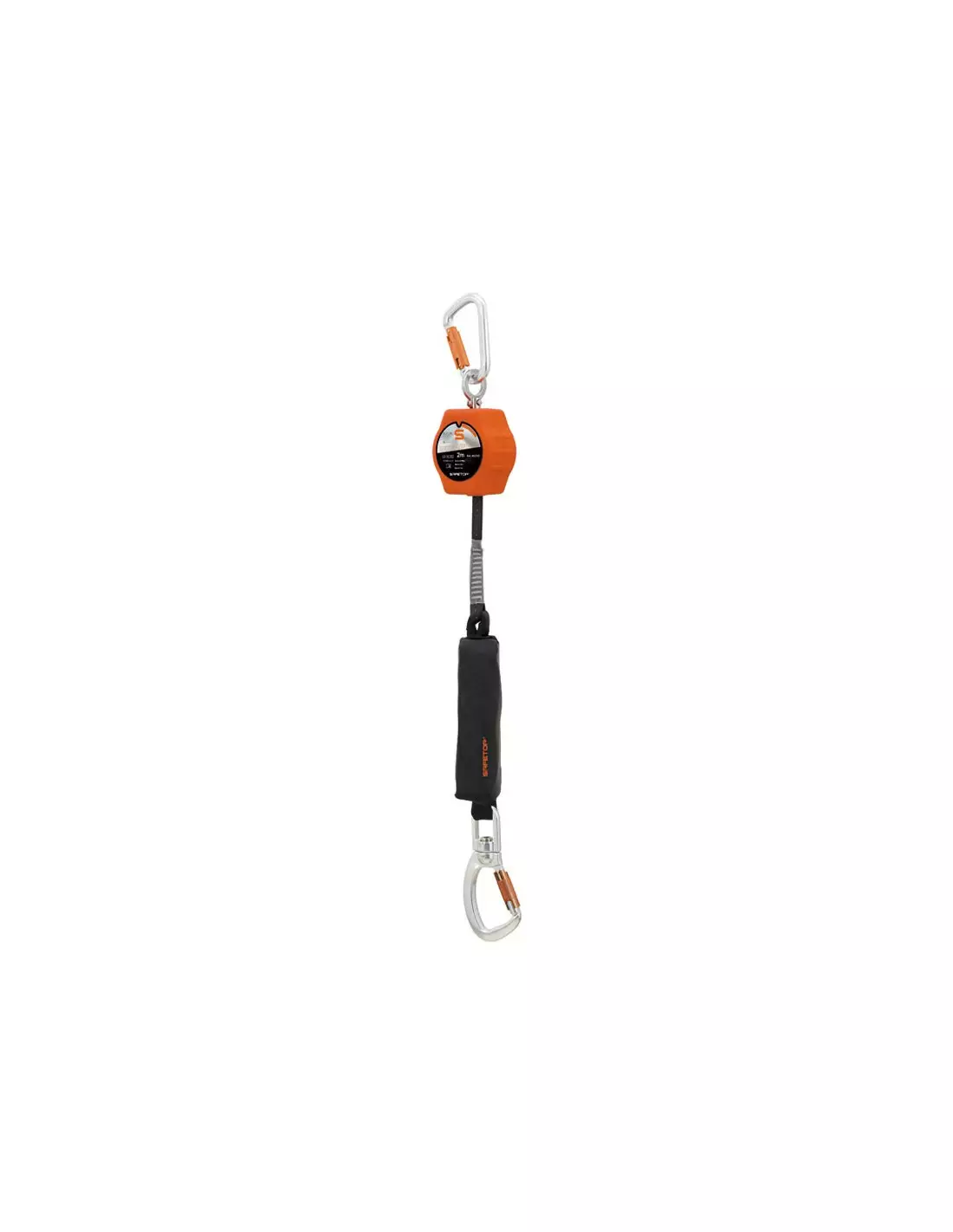

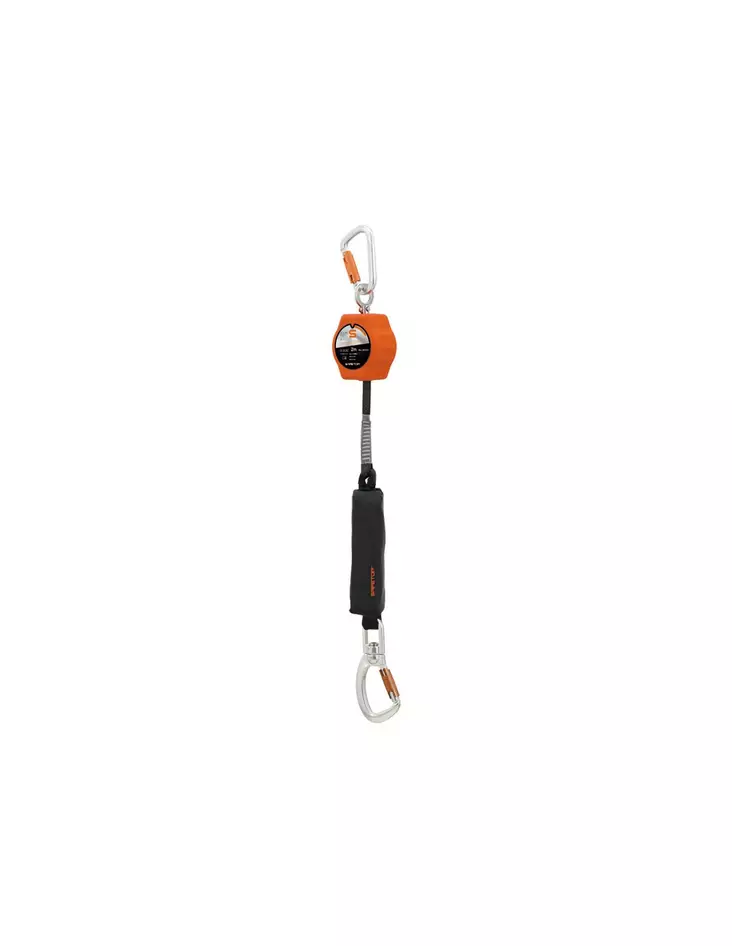

Safetop Dynaroll 80230J 2 m retractable fall arrester
The Safetop Dynaroll 80230J is a lightweight and compact retractable fall arrester for work at height. Its 2 m Dyneema® webbing provides freedom of movement in applications where clearance beneath the user is limited. Weighing 1.3 kg, the device is suitable for a total user weight of 45–140 kg, including equipment and tools.
Key features
- 2 m retractable Dyneema® webbing with a width of 20 mm
- High-strength UHMWPE webbing with an excellent strength-to-weight ratio
- Energy absorber integrated into the end of the webbing
- Reinforced nylon housing protects the internal mechanism against impacts
- Swivelling aluminium connectors help prevent the webbing from twisting
- Fall indicator displays a red mark after the device has sustained a fall load
- Total permitted user weight of 45–140 kg
Applications
Dynaroll is intended for vertical work at height with the anchor point located above the user. Its compact design is suitable for construction sites, industrial installation and maintenance work, and elevated work platforms when its use is compatible with the workplace risk assessment and the other components of the fall protection system.
Safety and compliance
Dynaroll 80230J is an EN 360:2023 Category III PPE product. The upper connector complies with EN 362 Class B and the lower connector with EN 362 Class T. According to the manufacturer, the device must be inspected every 12 months by the manufacturer or an authorised competent person. A visible red fall-indicator mark means that the device has sustained a fall load and must be removed from service.
Technical specifications
- Product reference: 80230J
- Webbing length: 2 m
- Webbing width: 20 mm
- Total user weight: 45–140 kg
- Product weight: 1.3 kg
- Static resistance: 12 kN for 3 minutes
- Housing material: reinforced nylon
- Webbing material: Dyneema® UHMWPE
- Connector material: aluminium
- Upper connector 80120J: EN 362 Class B, 22 mm opening, 23 kN strength
- Lower connector 80110J: EN 362 Class T, 22 mm opening, 30 kN strength
- Standard: EN 360:2023
- PPE category: III
- Packaging unit: 1 piece
