Dam or wide parapet anchorage
- Product Code: FA6004500

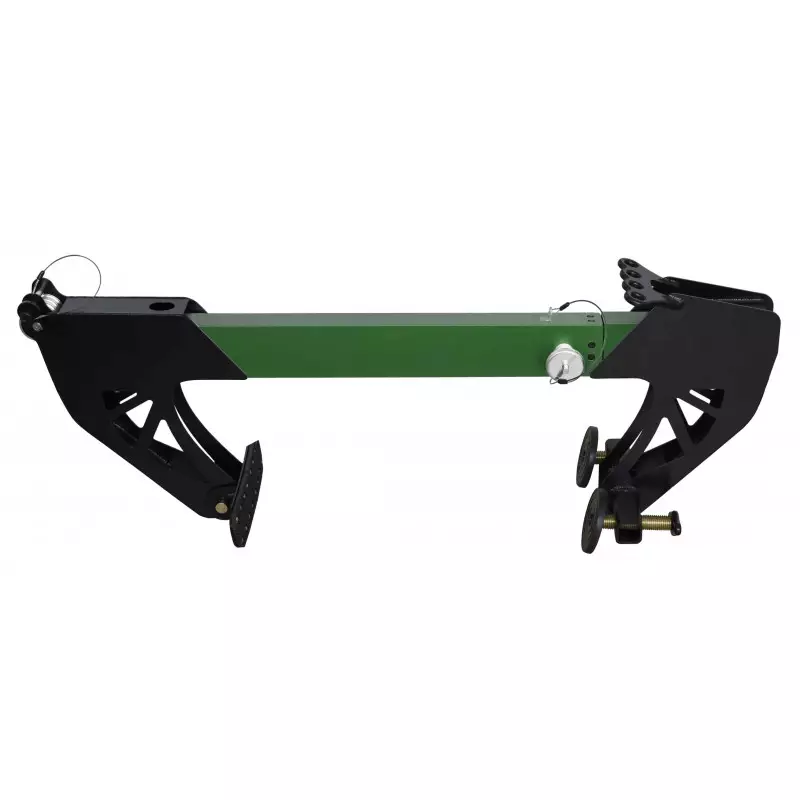

Kratos Safety Kariba - portable anchorage point for wide parapets
Kratos Safety Kariba FA 60 045 00 is a temporary and transportable anchorage device designed for wide parapets, walls and suitable dam structures. Equipped with four anchorage points and integrated return pulleys, it supports façade access, rope access work, fall arrest, rescue and evacuation arrangements. Its adjustable clamping range accommodates structures from 500 to 1,035 mm thick.
Key features
- Temporary and transportable Type B anchorage device
- Four anchorage points for work, safety, equipment and rescue lines
- Four integrated return pulleys guide ropes over the parapet edge
- Stationary and movable clamping jaws provide adjustment to the receiving structure
- Non-slip contact surfaces support stable installation
- Tested for use by two people in accordance with TS 16415:2013 Type B
- FA 60 045 01 carrying and anchorage strap included
Applications
The Kariba is intended for locations where a wide parapet, wall or dam provides a sufficiently strong anchorage structure. Typical applications include façade inspection and maintenance, rope access, fall arrest, rescue and evacuation operations. It is also suitable for parapets fitted with coping.
Safety and compliance
The Kariba is Category III personal protective equipment under PPE Regulation (EU) 2016/425. The anchorage device complies with EN 795:2012 Type B for one user and has been tested for two-person use in accordance with TS 16415:2013 Type B. The product is covered by EU type-examination certificate 2777/24937-01/E01-01.
The receiving structure must be capable of withstanding a static load of at least 14 kN in the direction of use. Suitability for the intended installation must be assessed before use. Installation, operation and periodic inspections must follow the manufacturer's instructions. Inspection is required at least every 12 months by the manufacturer or a competent person.
Technical specifications
- Brand: Kratos Safety
- Model: Kariba
- Product reference: FA 60 045 00
- Type: temporary and transportable anchorage device
- Number of users: up to 2 according to the stated TS 16415:2013 testing
- Receiving structure thickness: 500-1,035 mm
- Product dimensions: 820 x 155 x 150 mm
- Weight: approximately 17.4 kg
- Tube material: anodised aluminium
- Clamping jaws: corrosion-treated steel
- Anchorage points: 4
- Integrated return pulleys: 4
- Breaking strength: 14 kN
- Standard: EN 795:2012 Type B
- Two-user testing: TS 16415:2013 Type B
- Classification: Category III PPE
- Included: FA 60 045 01 carrying and anchorage strap, adjustable from 0.88 to 1.30 m
