CleanAIR Chemical 2F blower unit

CleanAIR Chemical 2F Plus PAPR – complete blower unit package with battery, belt and charger

CleanAIR Chemical 2F Plus 510000FCA is a powered air purifying respirator (PAPR) unit designed for demanding working environments. The package includes the blower unit together with a 510010 Standard Li-Ion battery, wide padded Comfort belt, EU charger and flow indicator.

Chemical 2F Plus provides protection against particulates and, when equipped with appropriate filters, can also be used against a wide range of gases, vapours and combined contaminants. The complete respiratory protection system is configured for the application by adding compatible filters, a breathing hose and an approved hood, face shield or mask.

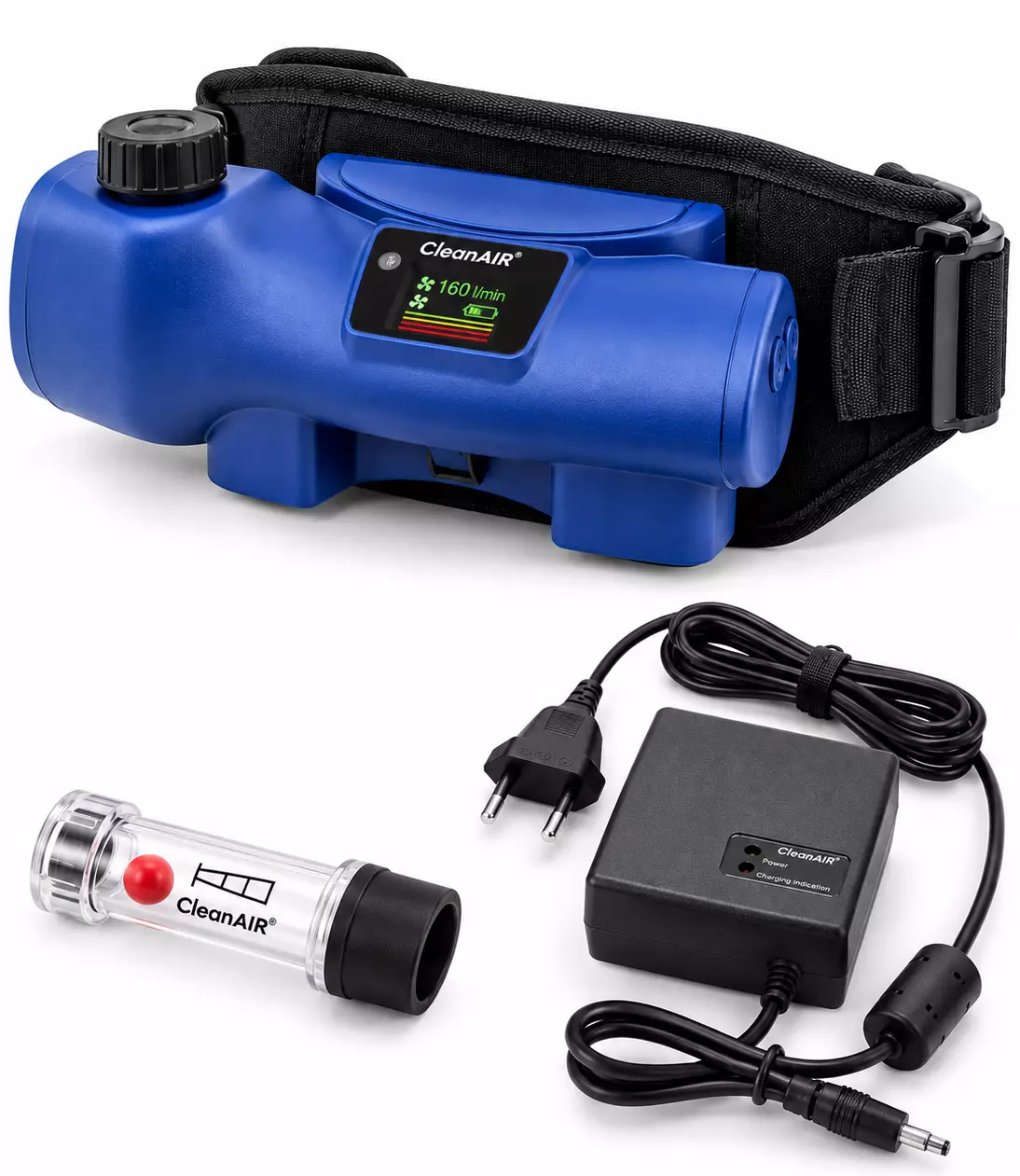

510000FCA package contents

• CleanAIR Chemical 2F Plus blower unit
• 510010 Standard Li-Ion battery – 14.4 V / 3.2 Ah
• 710092 Comfort padded belt – wide and padded
• 510030EUR Li-Ion battery charger – EU plug
• Flow indicator

Note: product code 510000FCA does not include filters, breathing hose or headtop/mask. These components must be selected separately according to the application and required level of protection.

510010 Standard battery

• Product code: 510010
• Battery type: rechargeable Li-Ion
• Voltage: 14.4 V
• Capacity: 3.2 Ah
• Energy: 46.46 Wh
• Weight: approx. 0.36 kg
• Operating time: up to approx. 9 hours depending on configuration and airflow
• Battery lifespan: up to 500 charging cycles

Key features

• Professional PAPR unit for demanding working environments
• Suitable for particulate, gas, vapour and combined contaminants depending on the selected filter configuration
• Airflow with masks: 80–160 l/min depending on filter type
• Airflow with hoods: 160–235 l/min depending on filter type
• Colour TFT display shows operating mode, airflow, filter condition and battery status
• Flow Control system maintains a constant airflow regardless of filter clogging or battery charge
• Visual and audible warning for low airflow and low battery charge
• Automatic closing system reduces the risk of unwanted contamination while changing filters
• Built-in barometric sensor automatically compensates airflow according to altitude
• Ball-bearing brushless motor
• Two RD40x1/7" filter connections
• CA40x1/7" breathing hose connection
• Comfort padded belt suitable for waist sizes up to approximately 1500 mm

Applications

CleanAIR Chemical 2F Plus is suitable for demanding applications in the chemical industry, heavy industry, laboratories, metalworking, pharmaceutical production, repair and renovation work, and other environments where powered air-purifying respiratory protection is required.

The blower supplies filtered air to the user's approved headtop or mask, helping to reduce breathing resistance compared with non-powered filtering respirators. Adjustable airflow allows the system to be configured according to the selected headtop, filters and working conditions.

Technical specifications

• Brand: CleanAIR
• Product: Chemical 2F Plus
• Product code: 510000FCA
• Product type: Powered Air Purifying Respirator / PAPR
• Battery: 510010 Standard Li-Ion, 14.4 V / 3.2 Ah
• Airflow with masks: 80 / 120 / 160 l/min depending on filter type
• Airflow with hoods: 160 / 185 / 210 / 235 l/min depending on filter type
• Weight: approx. 1000 g including Standard battery, excluding filters
• Dimensions: 235 × 126 × 65 mm with Standard battery
• Noise level: <70 dB
• Motor: ball-bearing brushless motor
• Filter connections: 2 × RD40x1/7"
• Air outlet connection: CA40x1/7"
• Display: TFT colour display, 160 × 160 px
• Operating temperature: 0°C to +60°C
• Storage temperature: -10°C to +55°C
• Ingress protection: IP64 / IP65 / IP68 depending on operating conditions and accessories
• Attachment: wide padded Comfort belt
• Availability: immediately available from our Turku store

Protection classes and standards

The final protection class depends on the selected headtop or mask, filters and complete system configuration.

• EN 12941 – Powered filtering respiratory protective devices incorporating a helmet or hood: up to TH3 / NPF 500
• EN 12942 – Powered filtering respiratory protective devices incorporating full face masks, half masks or quarter masks: up to TM3 / NPF 2000

Filters, breathing hose and headtop sold separately

Chemical 2F Plus does not form a complete respiratory protective system on its own. Product code 510000FCA does not include filters, a breathing hose or a headtop/mask. Filters must be selected according to the contaminants and concentrations present in the working environment, and only components approved for use with the CleanAIR Chemical 2F Plus system should be used.
