BIO-S-CAPE compressed-air escape breathing apparatus

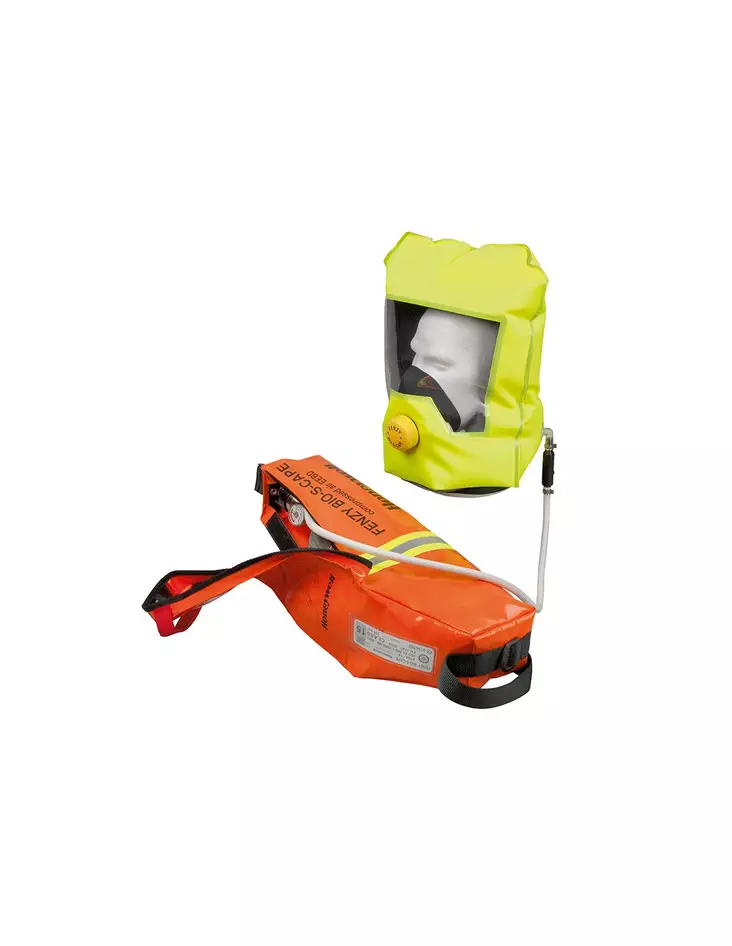

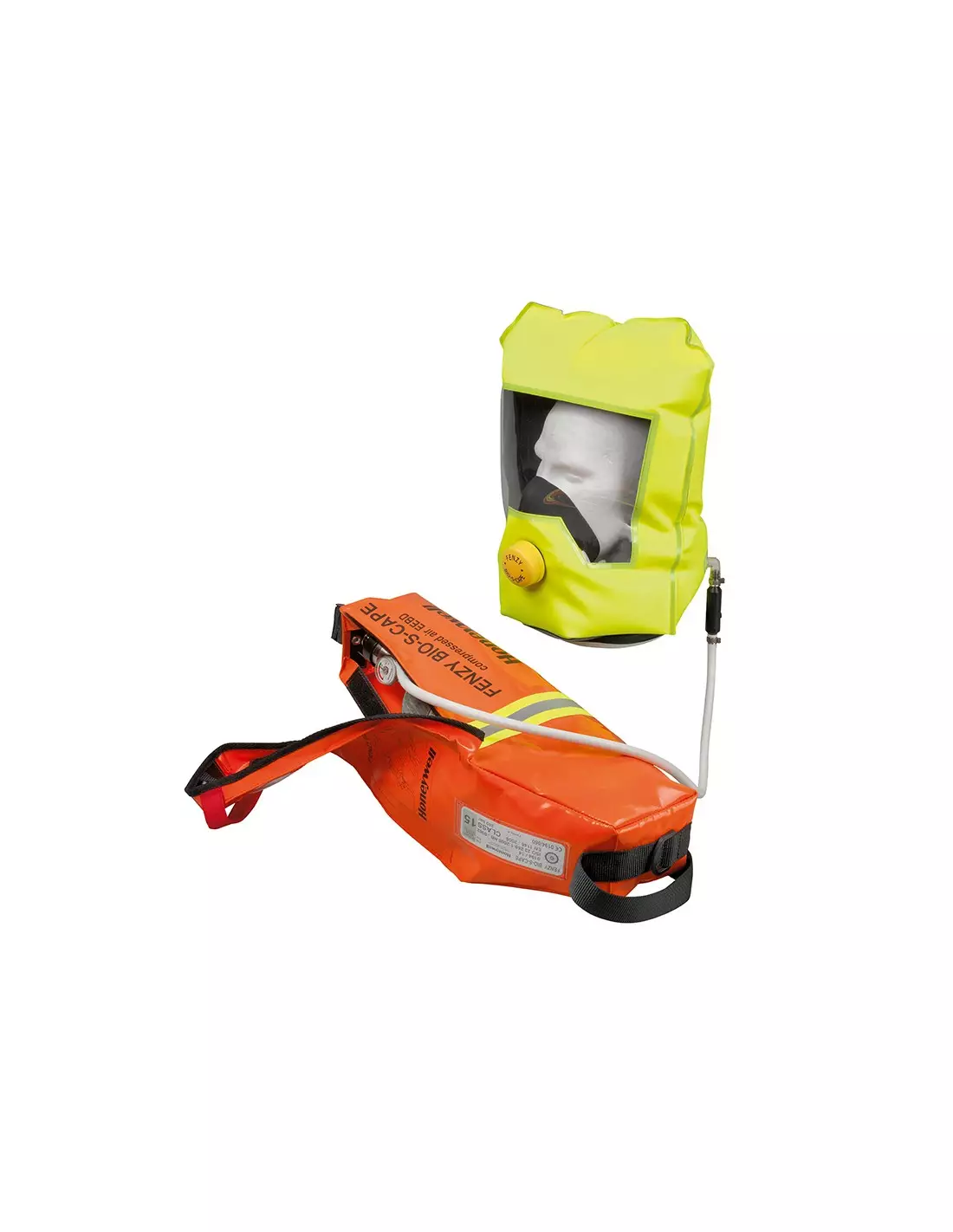

BIO-S-CAPE compressed-air escape breathing apparatus with 3 L steel cylinder

The BIO-S-CAPE 70645 is a compressed-air escape breathing apparatus designed for rapid emergency evacuation. The hood-type PPE is stored in a protective carrying bag that automatically activates the breathing-air supply when opened. Its wide field of vision, positive-pressure hood and hands-free design support controlled evacuation in industrial environments.

Key features

• Breathing-air supply activates automatically when the carrying bag is opened
• Positive pressure inside the hood helps limit the ingress of surrounding gases
• Integrated inflatable air cushion opens the hood automatically
• Wide-angle visor without optical distortion
• Built-in warning device indicates when the breathing-air supply is running out
• Adjustable carrying strap and cylinder charging connection
• One-size hood designed by the manufacturer to accommodate different face shapes, facial hair and spectacles

Applications

The BIO-S-CAPE is intended for emergency escape from chemical, petrochemical and other industrial environments where harmful gases may be present. It is an escape apparatus and is not intended as respiratory protection for routine or continuous work.

Safety and compliance

The product is CE marked and, according to the manufacturer's EU Declaration of Conformity, complies with EN 1146:2005 and Regulation (EU) 2016/425 on personal protective equipment. The EU type examination was performed by APAVE Exploitation France SAS, notified body 0082.

Technical specifications

• Product reference: 70645
• Type: compressed-air escape breathing apparatus with hood
• Cylinder: integrated 3-litre steel cylinder, supplied empty
• Hood material: polyurethane
• Carrying harness material: orange PVC
• Operating temperature: -15 to +60 °C
• Dimensions: 500 x 160 x 180 mm
• Size: one size
• Sales unit: 1 piece
• Standard: EN 1146:2005
• EU type-examination certificate: 0082/236/079/12/17/0706
