ARGO 30 m rescue and work winch

Kratos Safety ARGO 30 m rescue and work winch

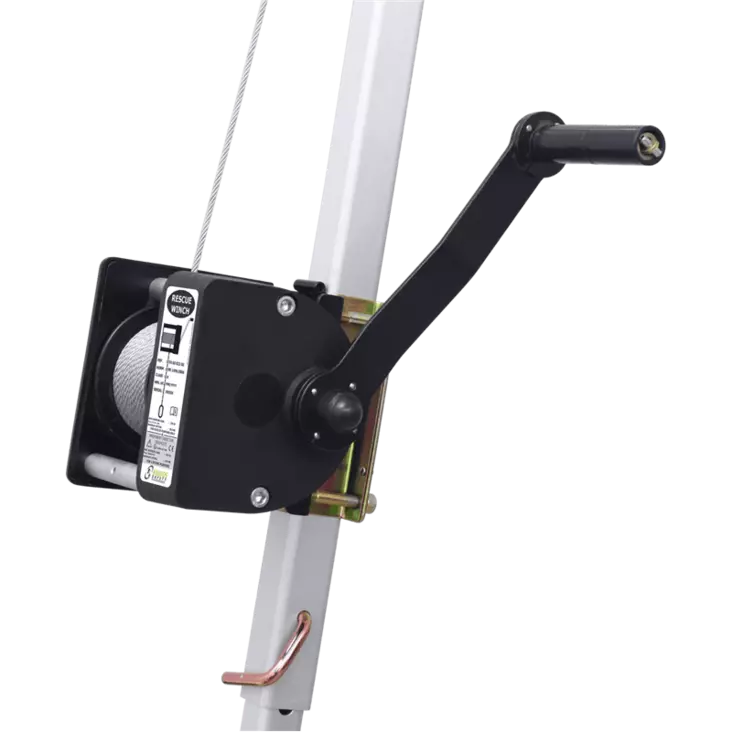

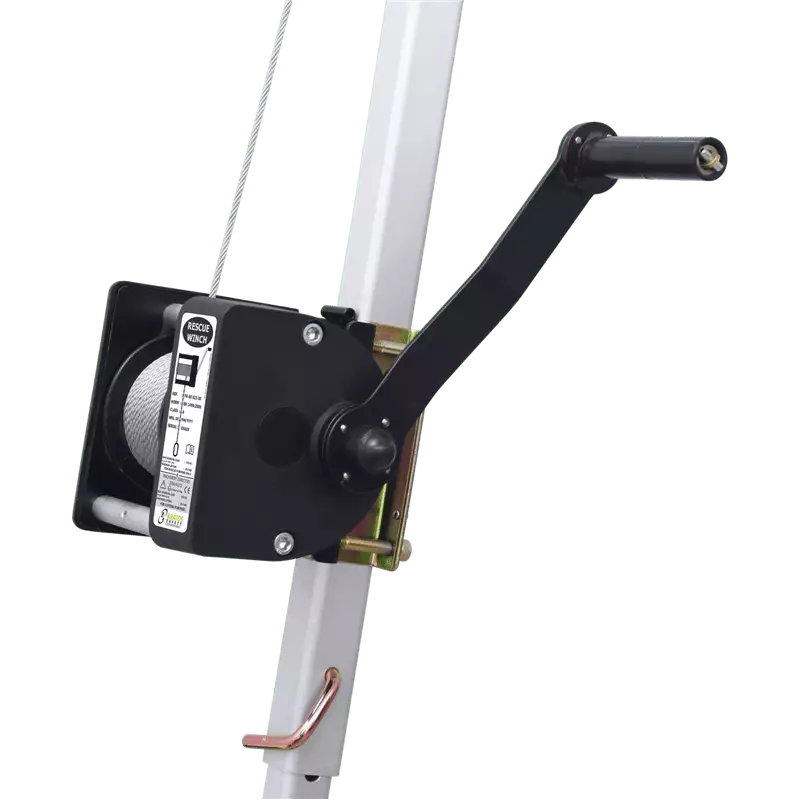

The Kratos Safety ARGO FA 60 003 30 is a manually operated rescue and work winch for raising or lowering a person during rescue operations and for lifting or lowering loads. It features a 30-metre galvanised steel wire rope and an automatic braking system that locks the rope when the crank handle is released. The winch is compatible with selected Kratos Safety tripods, MultiSafeWay systems and EasySafeWay systems.

Key features

• 30 m galvanised steel wire rope with a diameter of 4.8 mm
• Permitted load for person rescue: 60–135 kg
• Permitted load for material lifting: 60–250 kg
• Automatic braking system locks the wire rope when the crank is released
• Rescue device for one user
• Corrosion-treated metal components
• Operating temperature from -30 to +50 °C
• Product weight 8.75 kg

Applications

The ARGO winch is designed for raising or lowering a person during rescue operations and for handling materials in confined spaces, shafts, tanks and other locations requiring vertical access. When used for person rescue, the winch must be combined with a fall-arrest system in accordance with EN 363. The winch is not a substitute for fall-protection equipment.

Compatibility

• Tripods FA 60 001 00 and FA 60 002 00
• Tripods FA 60 101 00 and FA 60 102 00 with adapter plate FA 60 101 02
• MultiSafeWay FA 60 022 00 with adapter plate FA 60 022 06
• EasySafeWay FA 60 105 00 with adapter plate FA 60 105 02
• EasySafeWay FA 60 106 00 with adapter plate FA 60 106 02

Safety and conformity

The rescue classification is EN 1496:2017 Class A. Requirements for lifting loads are based on EN 13157:2004+A1:2009 and Machinery Directive 2006/42/EC. The product carries the ATEX marking II 2 G Ex h IIC T6 Gb, with the technical documentation referring to EN ISO 80079-36:2016 and EN ISO 80079-37:2016. Selection, installation, use and inspection must follow the manufacturer’s instructions.

Technical specifications

• Brand: Kratos Safety
• Model: ARGO
• Product reference: FA 60 003 30
• Wire rope length: 30 m
• Wire rope material: galvanised steel
• Wire rope diameter: 4.8 mm
• Number of users: 1
• Permitted person load: 60–135 kg
• Permitted material load: 60–250 kg
• Operating temperature: -30 to +50 °C
• Weight: 8.75 kg
• Standard: EN 1496:2017 Class A
• Load lifting: EN 13157:2004+A1:2009
• ATEX marking: II 2 G Ex h IIC T6 Gb
