Anchor sheet Probelt AT180
- Product Code: AT180

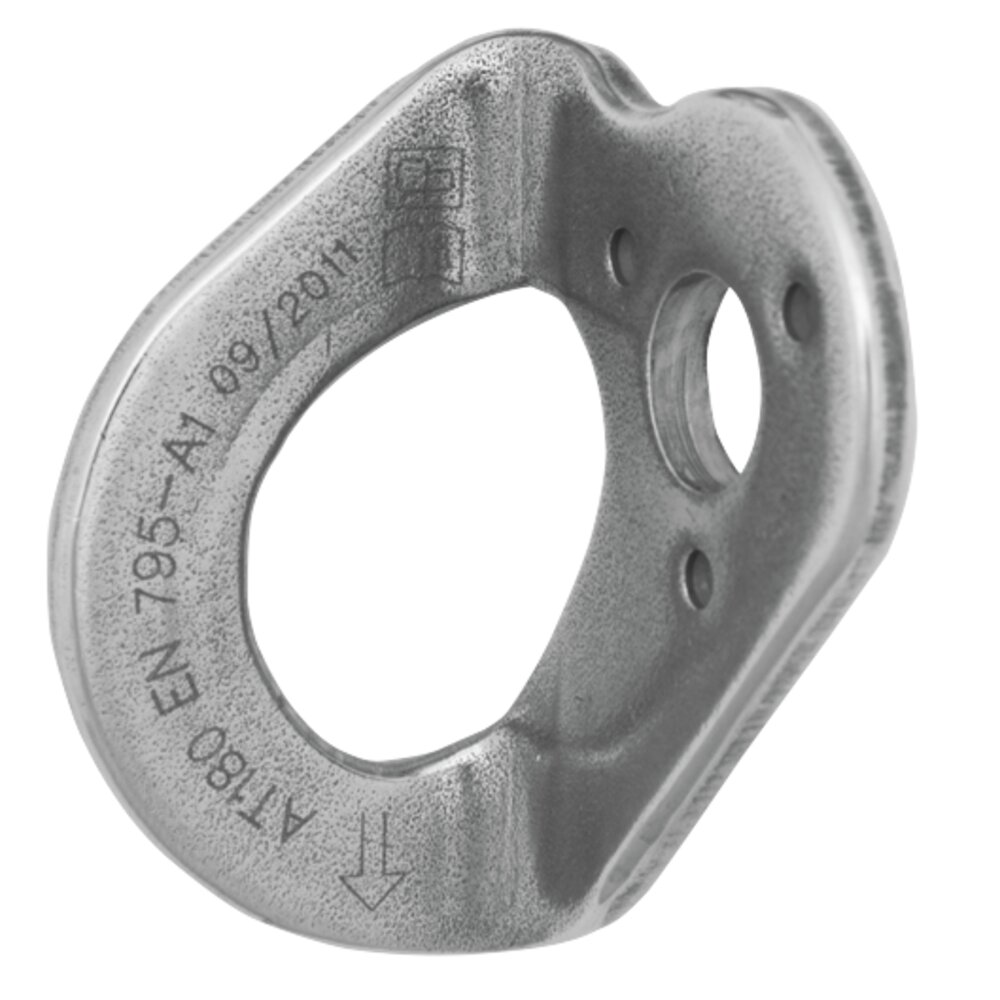

Protekt AT180 Anchor Point for One User
The Protekt AT180 is a Type A anchorage point designed for permanent installation on a concrete or steel structure as part of a personal fall protection system for one user. The compact anchor plate is manufactured from 304-grade stainless steel. The fixing bolt or anchor is not included.
Key features
- Designed for a single-user fall protection system
- Permanently installed Type A anchorage point
- 304-grade stainless steel construction
- Suitable for concrete or steel structures
- 12.4 mm fixing hole for an M12 fixing
- Fixing bolt or anchor not included
Applications
The AT180 is suitable as a permanent anchorage point for personal fall protection equipment on concrete and steel structures. Fall protection equipment is connected to the anchor point using an EN 362 compliant connector with a maximum body cross-section of 18 mm.
Safety and compliance
The anchor point complies with EN 795:2012 Type A and is intended for one user. It must not be used for lifting loads. When incorporated into a fall arrest system, the system must include a component that limits the arrest force applied to the user to no more than 6 kN. Installation must be completed by a competent person, and the anchor point must be inspected at intervals of no more than 12 months.
Technical specifications
- Brand and manufacturer: Protekt
- Model: AT180
- Product type: Type A anchorage point
- Material: 304-grade stainless steel
- Number of users: 1
- Fixing hole: 12.4 mm
- Concrete fixing: M12 mechanical or expansion anchor
- Minimum concrete strength: 20 MPa
- Steel fixing: M12 bolt, minimum grade A2-70
- Maximum load transferred to the structure: 12 kN in the permitted loading directions
- Standard: EN 795:2012 Type A
- Fixing bolt or anchor: not included
