Anchor point for I-beam AT250 Probelt
- Product Code: 841250

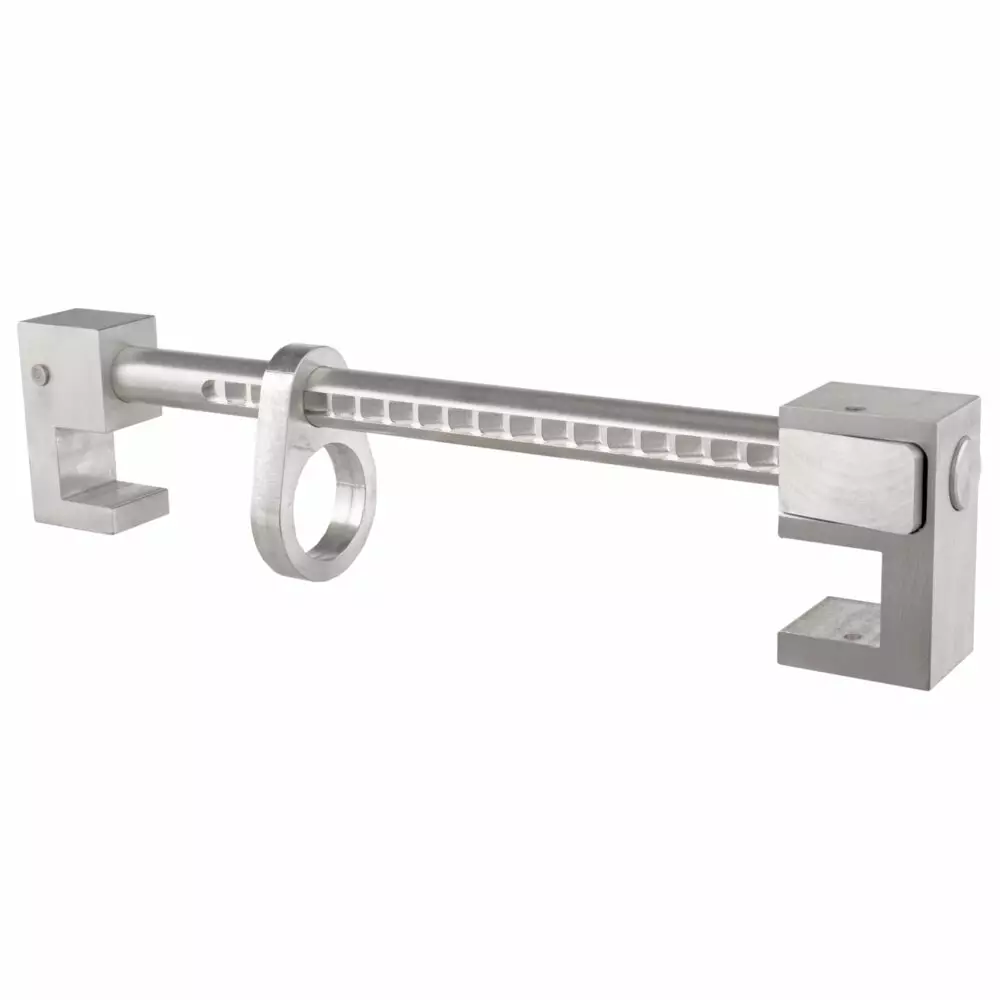

Protekt AT250 I-Beam Anchor – for 2 Users
Protekt AT250 is a portable anchorage device designed for connecting personal fall protection equipment to an I-beam. The lightweight aluminium beam anchor can be adjusted to fit I-beams from 100 to 320 mm and can be used simultaneously by up to two users.
Features
- Portable anchorage point for I-beams
- Adjustment range: 100–320 mm
- Suitable for up to 2 users
- Lightweight aluminium construction
- Anchorage eye diameter: 50.8 mm
- Designed for installation on horizontal I-beams
Applications
The AT250 is suitable for creating a temporary anchorage point on a horizontal I-beam in industrial facilities, construction sites and maintenance applications. The device can be attached to the beam without drilling holes.
Safety and standards
The AT250 complies with EN 795:2012 Type B and is suitable for simultaneous use by two users in accordance with CEN/TS 16415:2013.
The anchorage device must be installed on a horizontal beam above the user. Installation on vertical or inclined beams is not permitted. The suitability and sufficient strength of the beam and supporting structure must be verified before use in accordance with the manufacturer's instructions.
Technical specifications
- Manufacturer: Protekt
- Model: AT250
- Type: portable I-beam anchor
- Material: aluminium
- Dimensions: 440 × 100 × 45 mm
- Weight: 1.37 kg
- Adjustment range: 100–320 mm
- Anchorage eye diameter: 50.8 mm
- Maximum number of users: 2
- Standard: EN 795:2012 Type B
- Standard: CEN/TS 16415:2013
