71700 welding filter lens
- Product Code: 71700

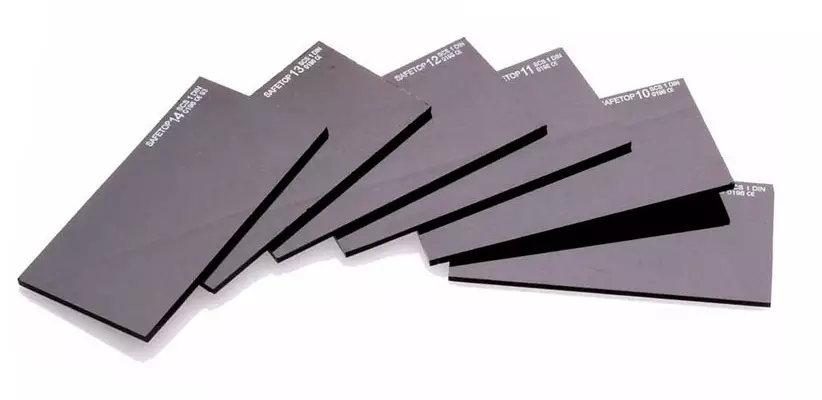

SAFETOP 71700 welding filter lens, 108 × 51 mm, DIN 9–14
SAFETOP 71700 is a mineral glass welding filter designed for compatible welding helmets and filter holders. The lens is available in fixed DIN shades 9, 10, 11, 12, 13 and 14. The appropriate shade should be selected according to the welding process and welding current.
Key features
- Available in DIN shades 9, 10, 11, 12, 13 and 14
- 108 × 51 mm format
- Fused, mass-tinted mineral glass
- Completely flat construction with no curvature
- Laser-polished cut edges
- Approximate glass thickness of 2.7–3.1 mm
- Replaceable filter lens for a compatible welding helmet
Applications
The welding filter lenses are intended for welding and metalworking environments. The available DIN 9–14 options allow the shade to be selected according to the welding process and welding current. Selection should be based on the work task and workplace risk assessment.
Safety and compliance
The welding filters are manufactured in accordance with EN 169, and the product information also lists EN 166. This product is a filter component intended for installation in a welding helmet or suitable lens holder; it is not a complete eye or face protector on its own. Use the lens only with compatible, undamaged protective equipment. Replace the filter if it becomes scratched, cracked or otherwise damaged.
Technical specifications
- Product reference: 71700
- Product type: Fixed-shade welding filter
- Material: Mass-tinted mineral glass
- Dimensions: 108 × 51 mm
- Available shades: DIN 9, 10, 11, 12, 13 and 14
- Thickness: Approximately 2.7–3.1 mm
- Shape: Flat
- Edges: Laser-polished cut
- Standards: EN 166 and EN 169
- Packaging: 10 / 100 pieces
