230/400V | IP44| 2,5mm
- Product Code: YT-8108

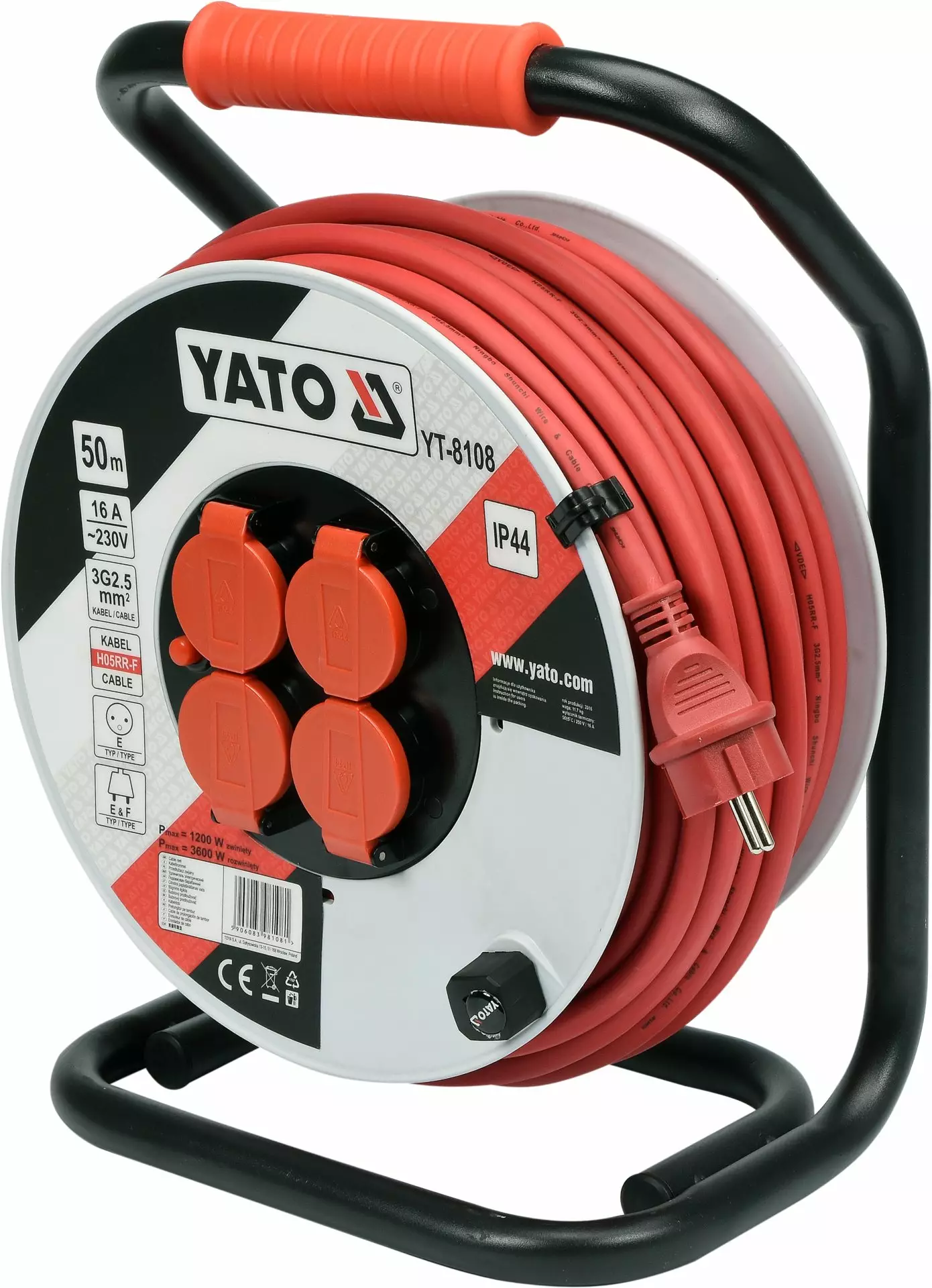

YATO YT-8108 50 m cable reel with 4 sockets, IP44
The YATO YT-8108 is a 50-metre extension cable reel for construction sites, workshops, maintenance operations and other locations where power is needed away from a fixed outlet. Its four earthed sockets allow several devices to be connected. The H05RR-F rubber cable, sturdy metal frame and carrying handle make the reel practical to use and transport.
Key features
- 50 m H05RR-F 3G2.5 mm² rubber cable
- Four earthed Type E sockets
- IP44 protection against solid particles and splashing water
- Maximum load of 3600 W when fully unrolled and 1200 W when coiled
- Thermal cut-out disconnects the power supply if the cable overheats
- Socket covers and an additional contact protection mechanism
- Sturdy metal stand, carrying handle and winding crank
Applications
The cable reel is suitable for construction sites, workshops, industrial maintenance, installation work, yards and storage areas. Its rubber-insulated cable offers resistance to mechanical stress, weather conditions and substances such as oils and fuels. The IP44 rating and the instructions supplied with the product must always be considered when selecting the operating environment and connections.
Safety and load capacity
The cable must be completely unrolled when the connected load exceeds 1200 W. The maximum total load with the cable fully unrolled is 3600 W. This value refers to the combined load of all equipment connected to the four sockets. If the thermal cut-out trips, disconnect the load, allow the reel to cool and reset the protection using its button. Do not use the product if the cable is damaged.
Technical specifications
- Brand: YATO
- Product code: YT-8108
- Cable length: 50 m
- Cable type: H05RR-F
- Conductors: 3G2.5 mm², copper
- Rated voltage: 230 V AC
- Frequency: 50 Hz
- Maximum current: 16 A
- Number of sockets: 4
- Socket type: Type E, earthed
- Plug type: E/F
- Maximum load with cable fully coiled: 1200 W
- Maximum load with cable fully unrolled: 3600 W
- Protection rating: IP44
- Thermal cut-out activation temperature: 56 ± 5 °C
- Reel material: PVC
- Colour: red
- Weight: 11.7 kg
- EAN: 5906083981081
