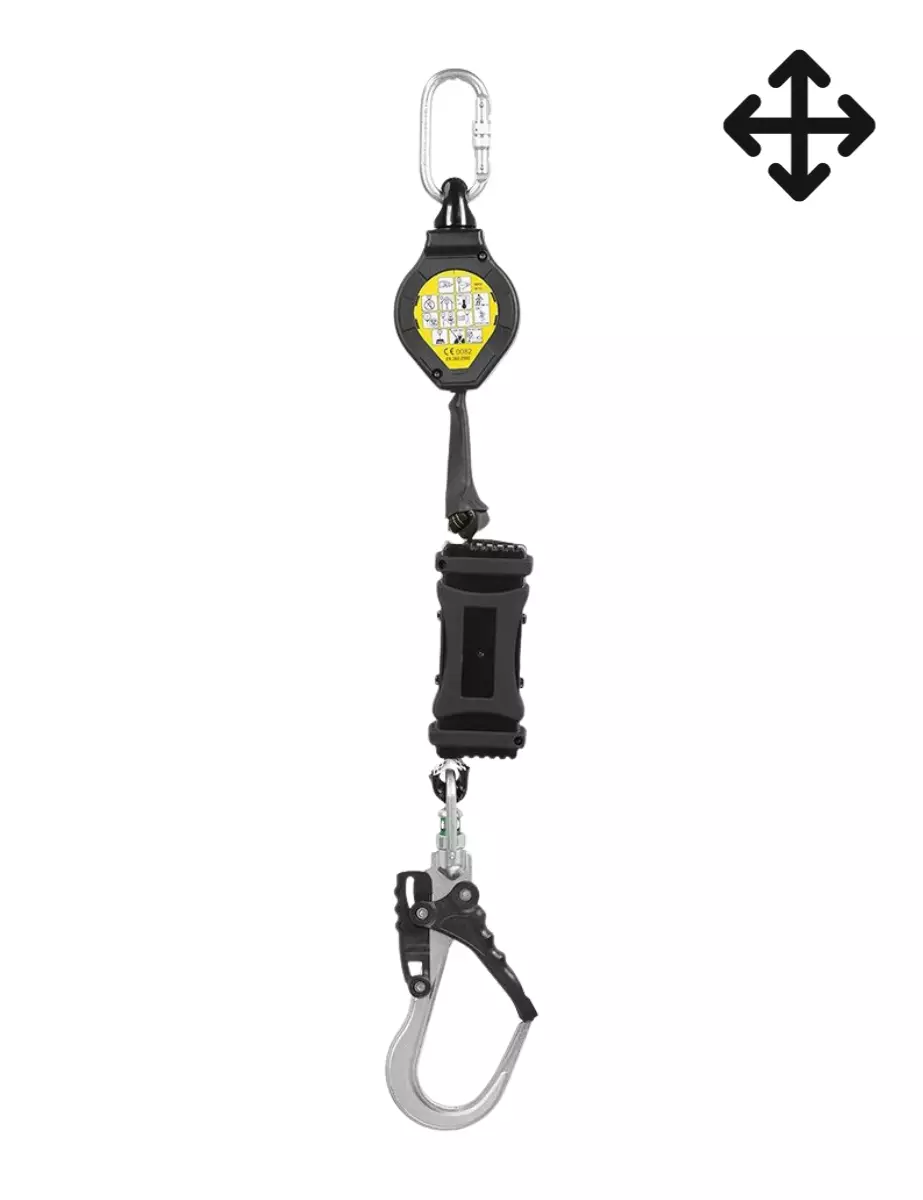

Probelt WR040HV retractable webbing fall arrester Black

Retractable webbing fall arrester designed for fall protection systems, suitable for vertical and horizontal use including situations where a fall over an edge may occur. Used as part of PPE fall protection equipment in construction, industrial maintenance and work platforms.

Probelt Retractable Webbing Fall Arrester WR040HV Black

General information

Self-retracting fall protection device designed to arrest the fall of a single user in situations where the anchorage point may be located above or below the user. The device limits the maximum arrest force to 6 kN in accordance with system requirements.

The device has been tested for horizontal use and for falls over structural edges. It is also approved for fall factor 2 situations, which allows use in applications such as mobile elevating work platforms where the anchorage point is located at foot level.

Technical specifications

• PRODUCT TYPE: retractable webbing fall arrester
• LENGTH: maximum working length 2.0 m
• MAX. ARREST FORCE: = 6 kN
• MIN. STATIC STRENGTH: 15 kN
• MAX. USER MASS: 140 kg (including equipment)
• STANDARDS: EN 360:2002 (Retractable fall arresters); PPE-R/11.060 (Horizontal use and edge fall); PPE-R/11.062 (User mass 140 kg); PPE-R/11.085 (Fall factor 2)
• WEBBING: width 18.5 mm; aramid core with polyester sheath
• MECHANISM: steel with galvanic zinc coating
• HOUSING: plastic, black
• CONNECTORS: AZ011 connector, gate opening 18 mm, strength 25 kN, screw lock; AZ029SI hook, gate opening 50 mm, strength 25 kN, automatic locking
• ADDITIONAL FEATURES: swivel connection, fall indicator
• WEIGHT: approx. 1.4 kg

Advantages and differences compared to similar products

• Suitable for both vertical and horizontal applications including edge fall situations.
• Approved for fall factor 2, allowing anchorage below the user.
• Short 2 m retractable design reduces fall distance in work platform and maintenance applications.
• Equipped with swivel connection and fall indicator to simplify inspection.

Intended use

Suitable for work requiring fall protection in sectors such as construction, maintenance, industry, logistics and mobile elevating work platform operations. The device may be used in situations where the anchorage point is located below the user, for example in MEWP baskets.

Available clearance distance and the risk of pendulum fall must always be evaluated before use. Edges must correspond to the tested conditions, for example rounded structural steel edges without burrs.

Inspection and service life

Service life

• The maximum service life is 10 years from the date of manufacture.
• The actual service life depends on the working environment, wear, chemicals, moisture and temperature.
• The device must be removed from service immediately if damage is detected or if it has arrested a fall.

Pre-use inspection

• The user must visually inspect the device before every use.
• The inspection must include the housing, connectors, webbing condition and the retraction and locking mechanism.
• The webbing must lock immediately when pulled sharply.

Periodic inspection

• The device must undergo periodic inspection at least every 12 months starting from the first date of use.
• The inspection must be recorded in the equipment inspection or life card.
• The inspection interval may be shortened depending on intensity of use and environmental conditions.

Who can perform the annual inspection

• The inspection must be carried out by a competent person trained in periodic inspection of fall protection equipment.
• The inspection may also be performed by the manufacturer or an authorized service center.
• The inspector must document the inspection and define the next inspection date.

Maintenance and repair

• Repairs and servicing may only be carried out by the manufacturer or an authorized service center.
• The device must not be opened or repaired by the user.
• After a fall arrest event the device must be returned to the manufacturer for inspection.

Q & A

• Warranty: according to sales and delivery conditions.
• Availability: confirmed per order.
• Technical questions: handled through written communication based on the provided application details.

Delivery information

Delivery methods: freight carrier or agreed collection. Delivery time: according to stock availability or manufacturer lead time. Store availability: not specified.
