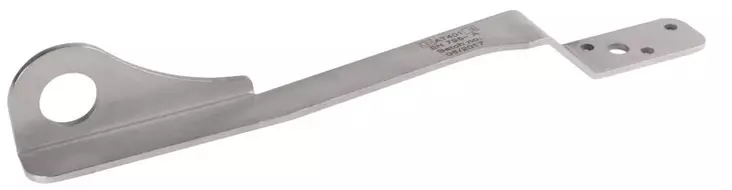

Nchor Attachment Point for Tile Roof AT401 Probelt

Mounting Methods for Different Structures Tiled Roof 1. Remove the roof tile 2. Place a short wooden plank in its place 3. Fix the anchor point to the plank using three (3) wood screws Wooden Structure - Use 3 wood screws, size 8×45 mm - Screws must be stainless steel or zinc-plated Concrete Structure - Use chemical or mechanical anchors with a minimum tensile strength of 12 kN - The concrete must have a minimum compressive strength of 25 MPa - Recommended mechanical anchors: FAZ 12, FBN 12, FZA18>M12 (by Fischer) - Recommended chemical anchors: HIT HY-150/HAS M12 (by Hilti), FIS M12 (by Fischer) Steel Structure - Fasten with M12 bolts of class A2-70 - Use washers and self-locking nuts or locknuts - All components must be corrosion-resistant or made of stainless steel --- Installation Procedure and Planning Before installation, the designer must define: - Scope and tasks to be performed on site - Maximum number of users (only one person per device) - Potential hazards at the site - Specific climatic or environmental conditions - Types of personal fall protection equipment to be used - Configuration of the safety system, including required clearance under the user and anchor point spacing - Type and load capacity of the supporting structure (e.g. roof, wall, beam) Recommended planning steps: - On-site inspection - Interview with the site owner or manager - Measurements and/or review of documentation as needed --- Technical Specifications - Material: Stainless steel - Plate thickness: 4 mm - Static tensile strength: 10 kN - Dimensions: 418 × 88 × 49 mm - Weight: 0.54 kg - Compliance: EN 795/A - Use: For one user only --- Product Description The AT401 is a Type A anchor device designed for personal fall protection systems, in accordance with PN-EN 795 standards. The AT401 consists of a stainless steel plate that is mounted onto a roof structure, including under roof tiles. The plate has one attachment hole at the end for connecting personal protective equipment, such as a lanyard or harness. The device is intended for use by one person at a time. All components are made of corrosion-resistant materials. > NOTE: According to PN-EN 365, the device must be inspected at least every 12 months.
