Probelt WR040MEWP retractable webbing fall arrester Red
- Product Code: WR040MEWP
- Availability: Factory order: 37 weeks
Retractable webbing fall arrester for use on MEWP basket platforms, designed for vertical and horizontal applications where a fall risk exists. Intended as part of PPE fall protection systems in elevated platform work.

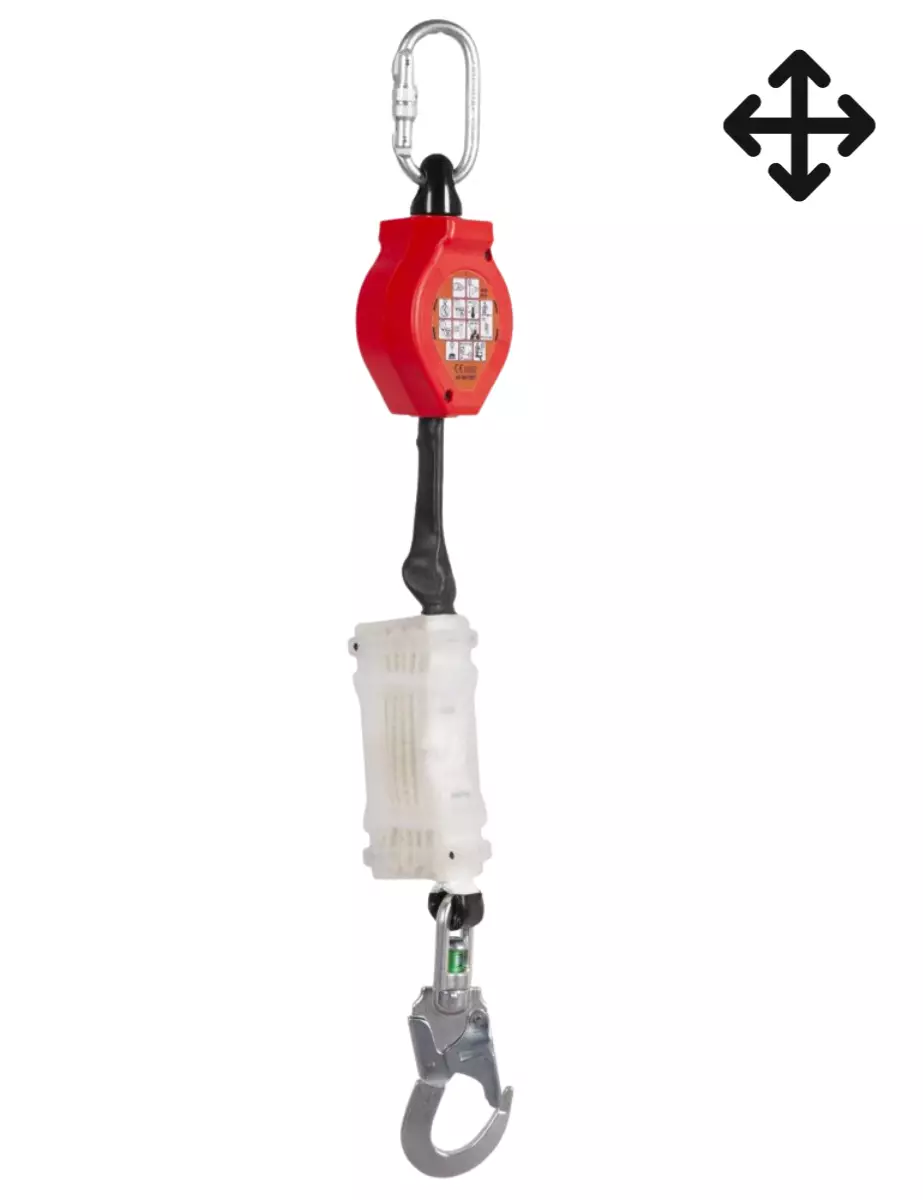

Probelt Retractable Webbing Fall Arrester WR040MEWP Red 1.8 m
General Information
Self-retracting fall arrester specifically designed for use on mobile elevating work platforms (MEWPs). The force transmitted to the anchorage point during testing on a platform was 1.71 kN, supporting platform compatibility requirements.
Suitability must be verified against the platform manufacturer’s instructions, anchorage location, and required clearance below the basket.
Technical Specifications
- PRODUCT TYPE: retractable webbing fall arrester for MEWP use
- LENGTH: max. 1.8 m (fully extended); 0.72 m (retracted)
- MAX. USER WEIGHT: 120 kg
- MAX. ARREST FORCE: 6 kN
- MIN. STATIC STRENGTH: 15 kN
- ANCHORAGE FORCE ON PLATFORM (TEST): 1.71 kN
- STANDARDS: EN 360:2002 (Retractable type fall arresters); PPE-R/11.060 (Horizontal use and edge fall); PPE-R/11.062 (User weight 120 kg); PPE-R/11.085 (Fall factor 2)
- MECHANISM: stainless steel
- WEBBING: width 18.5 mm; aramid core with polyester braiding
- CONNECTORS: AZ011 connector; AZ002ASI hook with swivel and EasyHook Open locking system
- ADDITIONAL FEATURES: swivel, energy absorber
- HOUSING: plastic, colour red
- WEIGHT: 1.42 kg
- ANNUAL INSPECTION: periodic inspection by a competent person every 12 months
Benefits and Differences Compared to Similar Products
- Designed and approved specifically for MEWP basket applications.
- Low force transmission to platform anchorage point during dynamic testing.
- Approved for vertical, horizontal, and fall factor 2 configurations.
- Integrated swivel and defined connector configuration for controlled attachment.
Intended Use
Suitable for operators working from mobile elevating work platforms where fall protection is required and anchorage points are integrated in the basket structure. Not suitable for use with extension lanyards or harnesses equipped with attachment point extensions.
The minimum required clearance below the platform must be verified prior to use to prevent ground or structure impact during fall arrest.
Q & A
- Warranty: provided in accordance with applicable sales and delivery terms.
- Availability: confirmed at the time of order.
- Technical enquiries: handled in writing based on provided application and platform details.
Delivery Information
Delivery methods: carrier shipment or agreed collection. Lead time: according to stock status or manufacturer lead time. Store availability: not specified.
