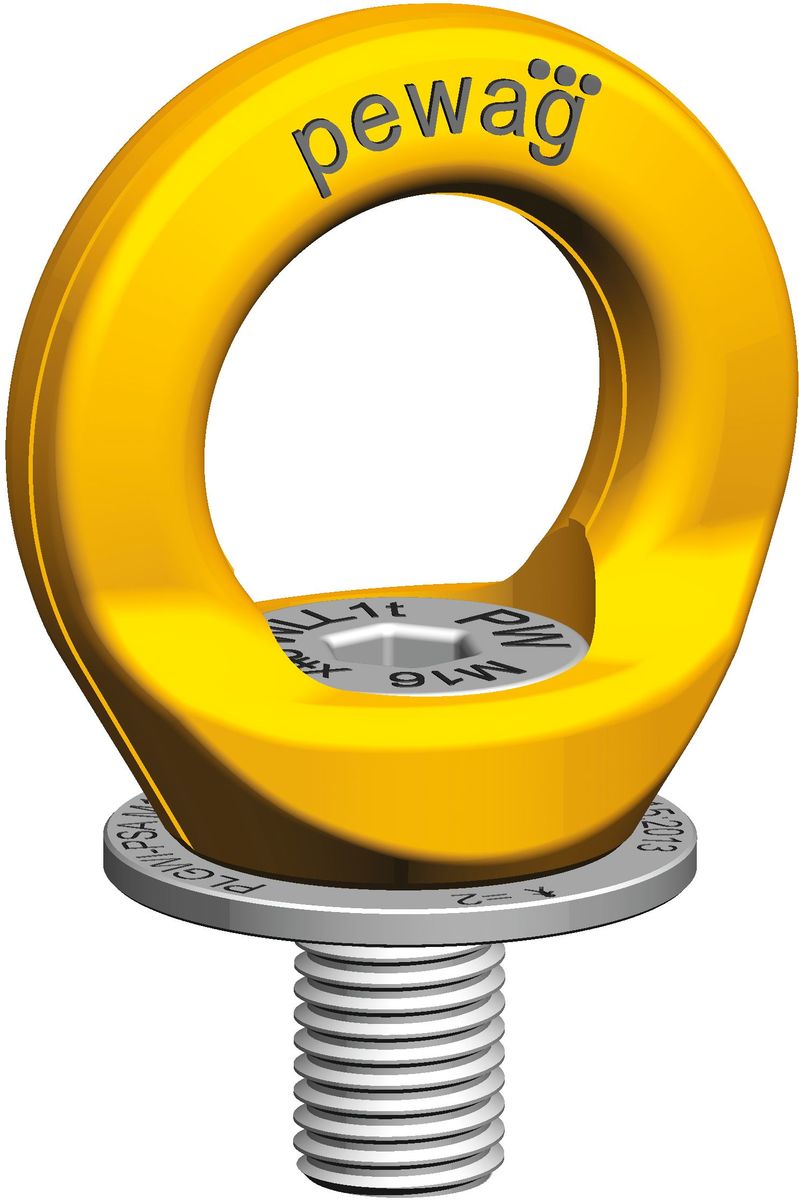

Pewag anchorage point M16 Basic 2PERS for personal fall protection equipment

The PLGWI-PSA is a pewag Winner Gamma Inox anchorage point for personal fall protection equipment – made of stainless steel.

The pewag Winner ProSecure Gamma Inox anchorage point is part of an anchorage system to which personal fall protection equipment can be attached. It has been developed and tested in accordance with stringent safety requirements for personal protective equipment, complying with EU Directive 89/686/EEC and already meeting the new EN795:2012 and CEN/TS 16415 standards.

All other details can be found in the operating manual.

Unlike the PLGW-PSA, the PLGWI-PSA is made of stainless material (INOX).

Additionally, screws are available in desired and/or maximum lengths. The PLGWI-PSA can be mounted using a special pewag PLGW key or a standard Allen key.

Metric thread M16. Max. 2 persons.

Here's a summary of the operating instructions and guidelines for the PLGWI-PSA anchorage point:

1. **User Requirements**:
  - Only properly trained individuals should operate the product, adhering to relevant standards and regulations.
  - Users must be in good physical condition and free from the influence of substances like drugs, alcohol, or medication.

2. **Emergency Preparedness**:
  - An emergency plan must be in place, covering all potential emergencies during product use.

3. **Product Integrity**:
  - The product should not be modified in any way.
  - Repairs and maintenance must follow pewag's instructions.

4. **Pre-Use Checks**:
  - Before each use, inspect for visible damage like deformations, cracks, or damaged threads.
  - Ensure the product functions correctly, with rotatable anchorage points aligned with the load direction.

5. **Intended Use**:
  - The PLGWI-PSA serves as an anchorage point for Type A anchorage systems according to EN 795:2012 or CEN/TS 16415:2013.
  - It may also be used with Type B anchorage systems and in compliance with OSHA standards (1926.502; 1926.140) and EN 50308 (wind turbines).

6. **User Groups**:
  - Only trained personnel should use and service the product, following instructions and regulations.
  - Repairs and inspections should only be conducted by competent personnel.

7. **Load Limitations**:
  - Loading should only occur in the specified direction with the maximum number of people according to provided tables and under appropriate operating conditions.

8. **Load Directions**:
  - The permissible load directions during correct use are illustrated in provided images.

9. **Anchorage Point Positioning**:
  - Proper positioning is crucial for safety, minimizing fall height in the event of an accident.
  - Mount the anchorage point to prevent impact with surfaces or obstacles during a fall.

Material: The duplex steel used for the ring, screw, and sleeve has high resistance to pitting corrosion, crevice corrosion, and stress corrosion cracking (PRE(N) value 34). Operating temperature: The long-term permitted ambient temperature must be between -40°C and +280°C. Impacts: The anchorage point is designed to withstand impacts and swinging expected in the event of a fall. Other information: The anchorage point may only be mounted with original parts. The ring is 360° rotatable around the screw and must be aligned with the expected direction of pull prior to loading. For exact dimensions, refer to our website at www.pewag.com.
