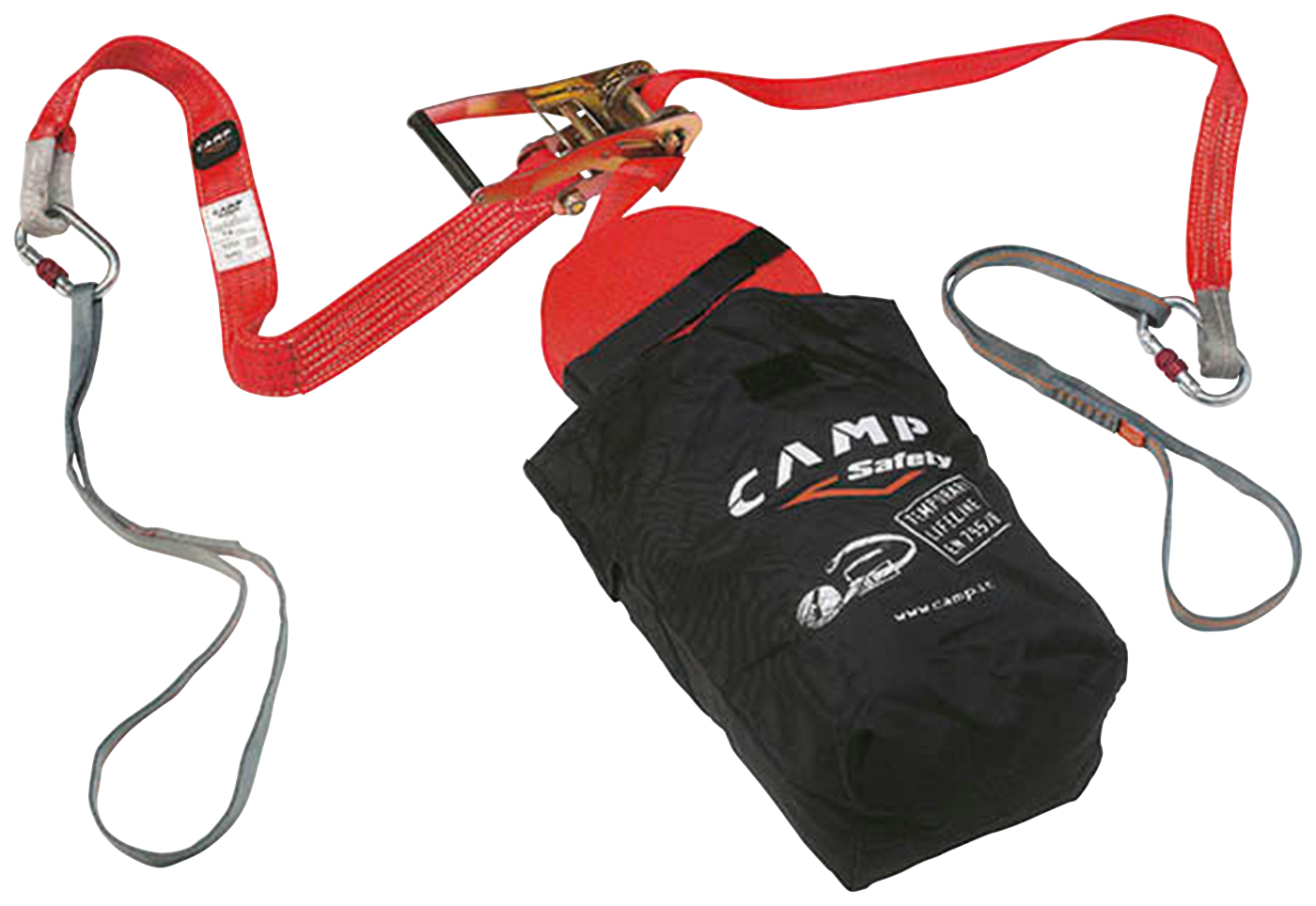

Camp Lifeliner 5-18m Anchor point

The CAMP Temporary Lifeline 5–18 m is an adjustable horizontal anchorage line for two users, designed for temporary fall protection on roofs, construction sites and industrial structures. The system meets EN 795 B+C and EN 795 C standards.

General Information

A temporary horizontal anchor line providing a controlled connection point for fall arrest or restraint. Suitable for short-term work where fast installation and removal are required.

Technical Specifications

• LENGTH: Adjustable 5–18 m
• MATERIALS: Polyester webbing 35 mm (30 kN) and 50 mm (60 kN), zinc-plated carbon steel tensioning unit
• ANCHOR LOOPS: Polyamide 60 cm, breaking load 22 kN (Ref. 104065)
• CONNECTORS: Steel oval connectors, 28 kN breaking load, 16 mm opening (Ref. 0981E)
• CERTIFICATION: EN 795 B+C, EN 795 C, CEN/TS 16415 (2 users)
• USER CAPACITY: Maximum 2 users simultaneously
• TENSIONING: Steel ratchet, fixed end and tensioning end
• ANCHOR REQUIREMENT: Minimum anchor strength =19 kN
• ANCHOR LOAD: Approximately 7–14 kN depending on span
• WEIGHT: Approx. 3000 g (18 m)

Benefits and Differences Compared to Similar Products

• Compact model covering the 5–18 m working range.
• Certified for two simultaneous users.
• Delivered as a complete set with tensioner and anchor loops.
• Clear span and load markings for correct installation.

Use Cases

Suitable for temporary horizontal anchorage on roofs, scaffolding, platforms and industrial structures. Not suitable for lifting, suspension or use outside certified fall protection systems.

Product Name

CAMP Temporary Lifeline 5–18 m

Q & A

• PPE Compatibility: Compatible with EN 355, EN 353-2 and EN 360 equipment; use only approved connectors.
• Warranty: 3-year manufacturer warranty.
• Service Life: Up to 10 years from first use and maximum 12 years from manufacturing.
• Model Updates: No documentation required after installation, as the system is temporary.
• Availability: Available as 18 m (Ref. 1095) and 30 m (Ref. 109501).

Delivery Information

• Delivery Method: Supplied in a polyester carrying bag.
• Delivery Time: Fast delivery when in stock.
• Store Availability: Immediately available in Turku and Kerava stores.
