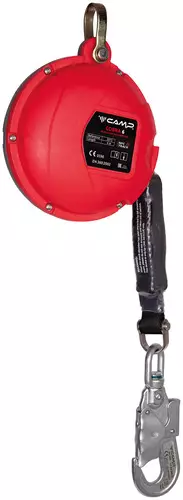

CAMP Cobra 6 m self-retracting fall arrester

CAMP Cobra 6 m is a compact self-retracting fall arrester designed for personal fall protection in industrial work, construction and maintenance. The device is particularly suitable for work at height where the user moves vertically, such as ladders, platforms, towers and steel structures.

CAMP Cobra 6 m retractable fall arrester – a lightweight and compact solution for vertical fall protection.

General Information

The Cobra 6 is a self-retracting fall arrester compliant with EN 360. It features a 6 m safety webbing that automatically retracts into the housing and remains under light tension as the user moves. In the event of a fall, the internal braking mechanism locks the webbing immediately to stop the fall.

The device includes an integrated polyester energy absorber that limits the maximum arrest force to less than 6 kN. A fall indicator integrated into the connector shows whether the device has been subjected to a fall arrest event. :contentReference[oaicite:1]{index=1}

The device is supplied with a guiding cord (Ø5 mm, length 6 m), which helps guide the webbing back into the retractor during vertical use. :contentReference[oaicite:2]{index=2}

Technical Specifications

• Product type: self-retracting fall arrester
• Product reference: 2075
• Length: 6 m
• Webbing: polyamide safety webbing
• Webbing width: 20 mm
• Webbing strength: > 12–15 kN
• Maximum user weight: 120 kg
• Energy absorber: polyester, maximum peak force < 6 kN
• Connector: auto-locking swivel connector (ref. 0925)
• Connector strength: > 23 kN
• Gate opening: 20 mm
• Fall indicator: integrated into the connector
• Housing: ABS plastic housing (durable industrial plastic casing)
• Weight: approx. 1.85 kg
• Certification: EN 360:2002

Use

The device is designed primarily for vertical use with the anchor point positioned above the user. When using the device, sufficient fall clearance must be ensured (minimum approximately 3 m) and the anchor point must meet fall protection strength requirements. The recommended maximum working angle for vertical use is approximately 40°. :contentReference[oaicite:3]{index=3}

Key Features

• Compact and lightweight compared to steel cable retractable devices.
• 6 m automatically retracting safety webbing.
• Integrated energy absorber limiting arrest forces.
• Fall indicator integrated into the connector.
• Swivel connector reduces webbing twisting.
• Durable ABS housing protects the internal mechanism.
• Supplied with guiding cord to assist webbing retraction.

Inspection and Service Life

The service life of the CAMP Cobra fall arrester is not limited to a fixed number of years. It depends on usage conditions, storage, loading and regular inspections.

Service Life

• The service life is not limited to a fixed number of years.
• The device can remain in service as long as it passes inspections and shows no damage.
• The device must be removed from service if damage or malfunction is detected.
• If the device has arrested a fall, it must be removed from service and inspected before reuse.

Routine Checks

• The user must perform a visual inspection before each use.
• Check the housing, connectors, webbing and identification markings.
• The webbing retraction and locking mechanism must be tested.

Annual Inspection

• An inspection is recommended at least once per year.
• The inspection can be carried out as a visual inspection by a competent PPE inspector.
• The inspector should have appropriate fall protection inspection training, for example certification from the Finnish Institute of Occupational Health (TTL) or equivalent.
• The inspection result should be recorded in the equipment inspection log.

Optional Accessory

• CAMP Cobra protective cover (Ref. 3263) – waterproof cover for outdoor use.
